Audi A4: Adapter for Assembling Flushing Circuit

  • Various adapters which are required to connect the Air Conditioning (A/C) service station to the refrigerant circuit for flushing and to bridge the removed receiver/dryer or reservoir and expansion valve (specific to vehicle) are in the following table.
  • Using a charge hose with 5/8 -18 UNF connections (short version, for example Refrigerant Circuits Adapter Set 1 - Adapter 31 -VAS6338/31-), connect the two adapters (contained in Refrigerant Circuits Adapter Set 1 -VAS6338/1-) which have been installed for the removed reservoir or receiver/dryer.
  • If a flushed refrigerant circuit is not reassembled immediately after flushing, adapters remain at connections and seal the connections at the adapters using Refrigerant Circuits Adapter Set 1 - Adapter 30 -VAS6338/30- (from Refrigerant Circuits Adapter Set 1 -VAS6338/1-).
  • Depending on the version of the compressor and time period of production, different connection and sealing techniques can be found for the refrigerant circuit. Refer to → Heating, Ventilation and Air Conditioning; Rep. Gr.87; System Overview - Refrigerant Circuit (vehicle-specific repair manual).
  • Beginning from production year 2006, the name of the "Zexel" A/C compressor was changed from "Zexel" to "Valeo".

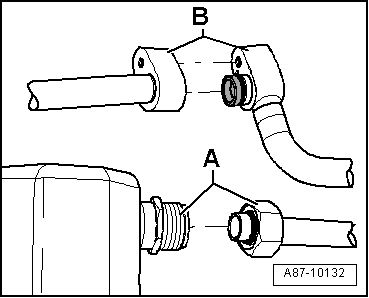

Block or screw connections

- Screw connection -A-

- Block connection -B-

A87-10132

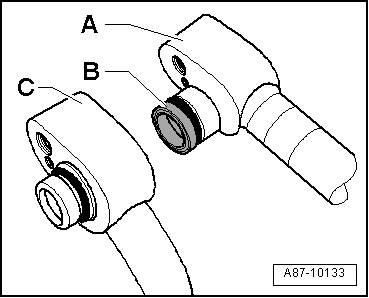

Block connections with different types of seals

- Block connection with radially sealed connection -A- (with plastic or metal guide -B-)

- Block connection with axial sealing connection -C-

A87-10133

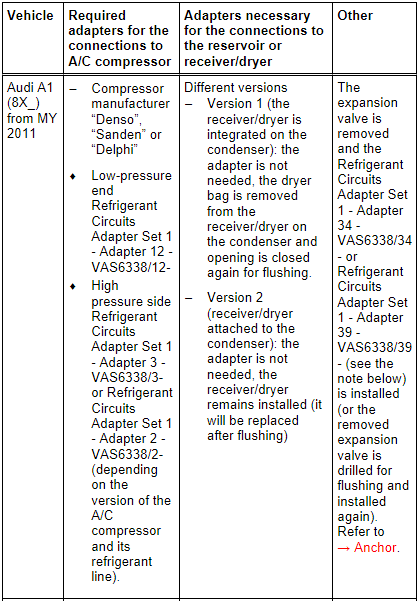

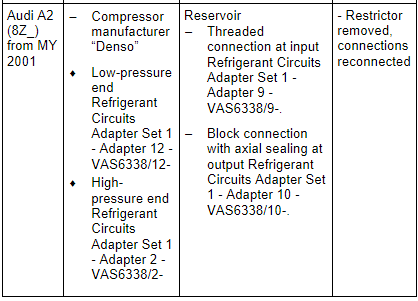

Audi A1 and Audi A2

Audi A1 and Audi A2

Audi A1 and Audi A2

  Note

  • The receiver/dryer may be attached to or integrated in the condenser on the Audi A1/S1, depending on the version of the condenser. A dryer cartridge is installed in the integrated receiver/dryer and can be replaced separately. After flushing, the attached receiver/dryer (introduction still open) must be replaced after the flushing. Refer to the Parts Catalog and → Heating, Ventilation and Air Conditioning; Rep. Gr.87; System Overview - Refrigerant Circuit (vehicle-specific repair manual).
  • There are different versions of the A/C unit (different heater core and sears different expansion valve etc.) depending on time period of production and from the VIN number on Audi A1/S1. Refer to the Parts Catalog. For vehicles with the type key "8X1" and "8XA" in the VIN number an expansion valve is installed, on those where both refrigerant lines are attached above, here the Refrigerant Circuits Adapter Set 1 - Adapter 34 -VAS6338/34- fits. For vehicles with the type key "8XF" and "8XK" in the VIN number an expansion valve is installed, on those where both refrigerant lines are attached below, here the Refrigerant Circuits Adapter Set 1 - Adapter 39 -VAS6338/39- fits. Refer to → Heating, Ventilation and Air Conditioning; Rep. Gr.87; Refrigerant Circuit; Expansion Valve, Removing and Installing (vehicle-specific repair manual).

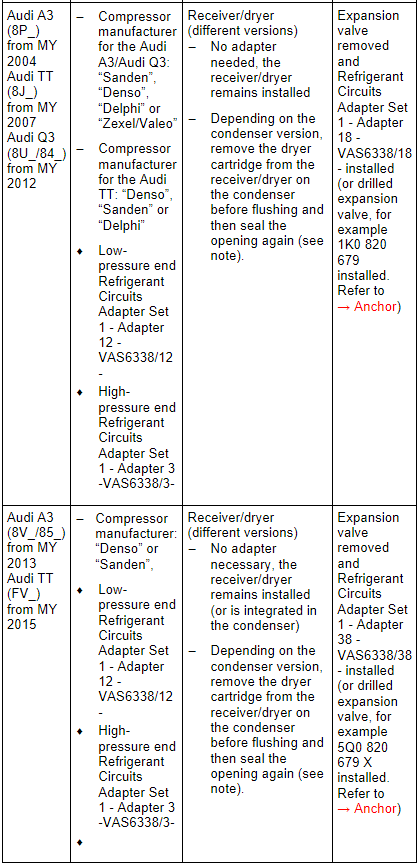

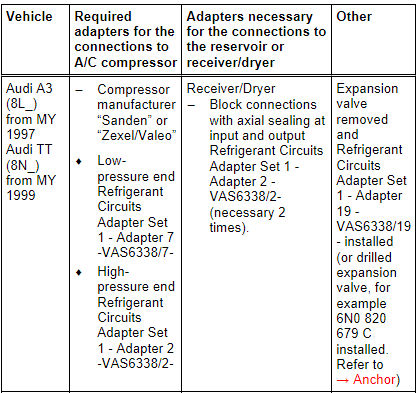

Audi A3, Audi Q3 and Audi TT

Audi A3, Audi Q3 and Audi TT

Audi A3, Audi Q3 and Audi TT

  Note

  • The version of the receiver/dryer on the Audi A3, Audi Q3 and Audi TT will differ depending on the manufacturer of the condenser. An Audi TT (8J_) from MY 2007 with a 5-cylinder engine has a different condenser version than on models with a 4- or 6-cylinder engine. The receiver/dryer is, for example, inside the condenser. The integrated receiver/dryer has a dryer cartridge that is no longer available as a replacement part. If there are complaints, then it is necessary to replace the complete condenser. Refer to the Parts Catalog and → Heating, Ventilation and Air Conditioning; Rep. Gr.87; System Overview - Refrigerant Circuit (vehicle-specific repair manual).
  • If the receiver/dryer or dryer cartridge is integrated in the condenser, then it cannot be replaced separately or is not available as a single part, and the condenser must be replaced. Refer to → Heating, Ventilation and Air Conditioning; Rep. Gr.87; System Overview - Refrigerant Circuit (vehicle-specific repair manual) and the Parts Catalog.

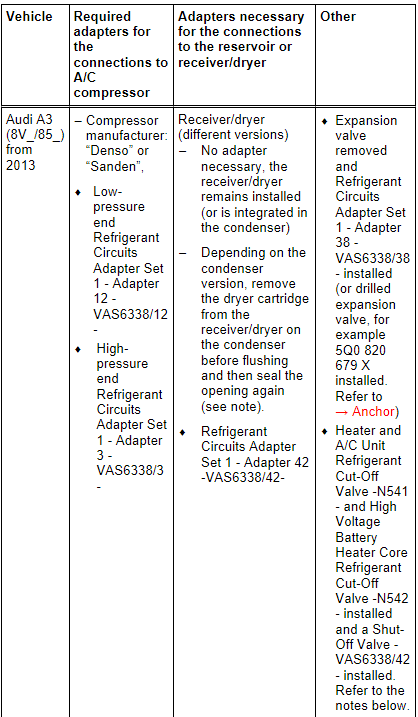

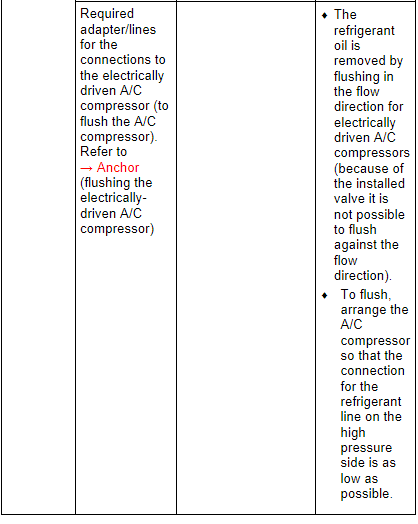

Audi A3 e-tron

Audi A3 e-tron

Audi A3 e-tron

  Note

  • On the Audi A3 e-tron the refrigerant circuit is flushed in two sections. In the first flushing cycle, the adapter, which is installed for the Heater and A/C Unit Refrigerant Cut-Off Valve -N541-, is opened and the adapter, which is installed for the High Voltage Battery Heater Core Refrigerant Cut-Off Valve -N542- is closed. Thus the refrigerant circuit with the evaporator in the A/C unit is flushed. In the second flushing cycle, the adapter, which is installed for the Heater and A/C Unit Refrigerant Cut-Off Valve -N541-, is closed and the adapter, which is installed for the High Voltage Battery Heater Core Refrigerant Cut-Off Valve -N542- is opened. From this the refrigerant circuit with the evaporator in the high voltage battery heat exchanger is flushed. Refer to → Heating, Ventilation and Air Conditioning; Rep. Gr.87; System Overview - Refrigerant Circuit (vehicle-specific repair manual).

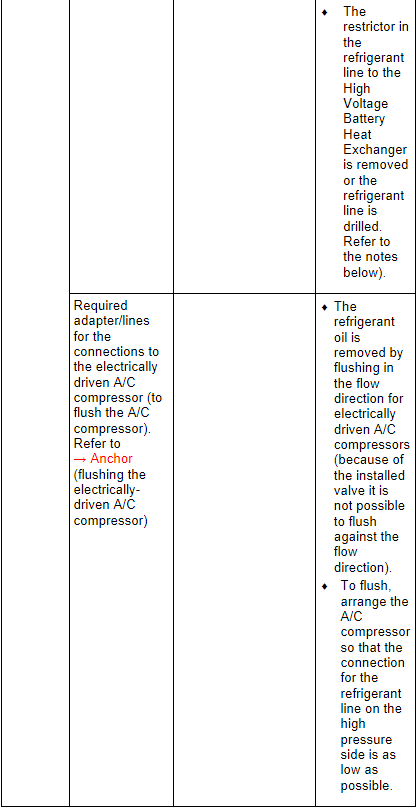

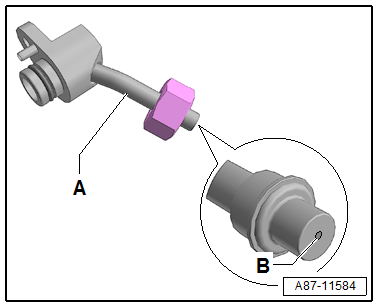

  • This illustration shows a refrigerant line -A- with a permanently installed restrictor -B- (without a strainer) This refrigerant line is drilled with a suitable drill 5.0 mm to flush the refrigerant circuit (an inserted restrictor is removed) and cleaned in the flushing circuit before installing. The drilled refrigerant line is replaced after flushing. Refer to the Parts Catalog.
  • The diameter of the illustrated variable orifice -B- is approximately 0.7 mm. Depending on the version of the refrigerant line this constriction is either installed fixed in the refrigerant line or only inserted. For the inserted version a strainer for flowing deposits may be installed, which can be blocked by the variable orifice.
  • The version of the receiver/dryer on the Audi A3 will differ depending on the manufacturer of the condenser. The receiver/dryer is, for example, inside the condenser. The integrated receiver/dryer has a dryer cartridge that is no longer available as a replacement part. If there are complaints, then it is necessary to replace the complete condenser. Refer to the Parts Catalog and → Heating, Ventilation and Air Conditioning; Rep. Gr.87; System Overview - Refrigerant Circuit (vehicle-specific repair manual).
  • If the receiver/dryer or dryer cartridge is integrated in the condenser, then it cannot be replaced separately or is not available as a single part, and the condenser must be replaced. Refer to → Heating, Ventilation and Air Conditioning; Rep. Gr.87; System Overview - Refrigerant Circuit (vehicle-specific repair manual) and the Parts Catalog.

A87-11584

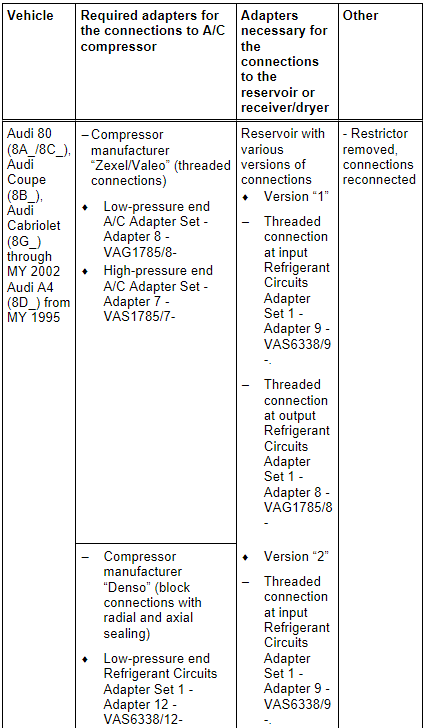

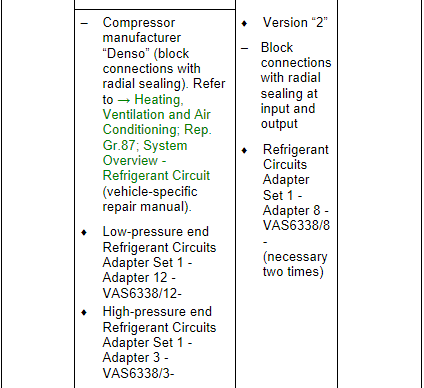

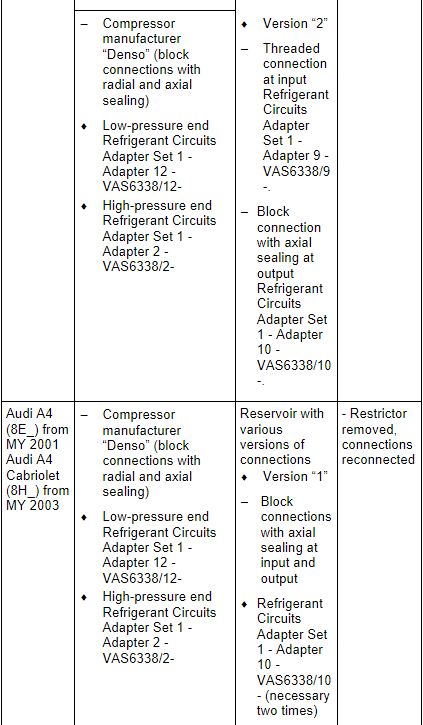

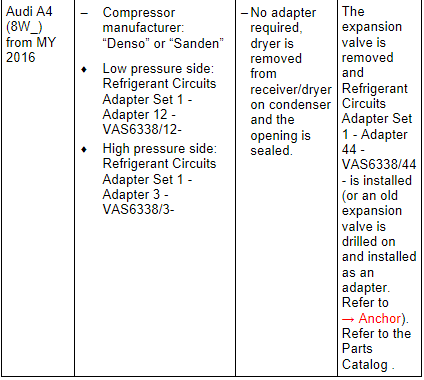

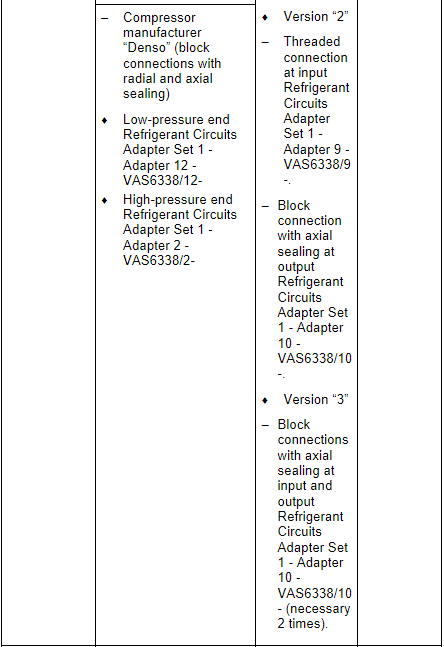

Audi 80, Audi 90, Audi Coupe, Audi Cabriolet and Audi A4

Audi 80, Audi 90, Audi Coupe, Audi Cabriolet and Audi A4

Audi 80, Audi 90, Audi Coupe, Audi Cabriolet and Audi A4

Audi 80, Audi 90, Audi Coupe, Audi Cabriolet and Audi A4

Audi 80, Audi 90, Audi Coupe, Audi Cabriolet and Audi A4

  Note

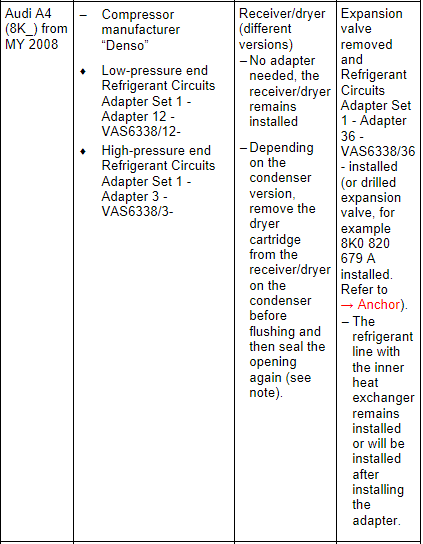

  • There are different versions of the receiver/dryer on the Audi A4 (8K_) from MY 2008, depending on the condenser manufacturer. Refer to → Heating, Ventilation and Air Conditioning; Rep. Gr.87; System Overview - Refrigerant Circuit (vehicle-specific repair manual). The receiver/dryer may be attached to or integrated in the condenser, depending on the version of the condenser. The integrated receiver/dryer has a dryer cartridge that is no longer available as a replacement part. In the event there is a complaint on a vehicle with this condenser, the condenser must be completely replaced. Refer to the Parts Catalog.
  • If the receiver/dryer or dryer cartridge is integrated in the condenser, then it cannot be replaced separately or is not available as a single part, and the condenser must be replaced. Refer to → Heating, Ventilation and Air Conditioning; Rep. Gr.87; System Overview - Refrigerant Circuit (vehicle-specific repair manual) and the Parts Catalog.

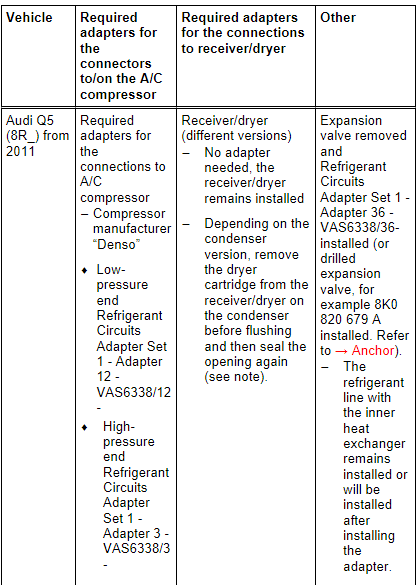

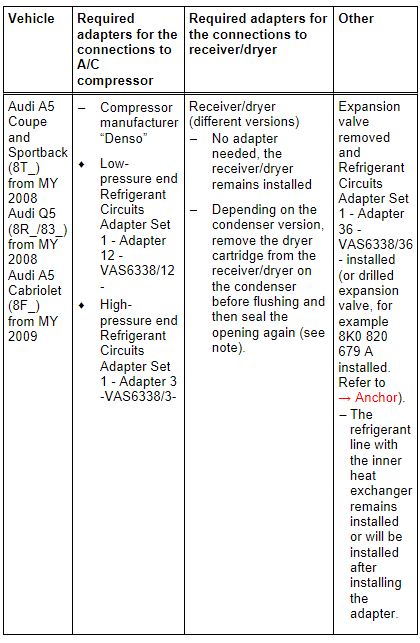

Audi A5 Coupe and Sportback, Audi Q5, Audi A5 Cabriolet

Audi A5 Coupe and Sportback, Audi Q5, Audi A5 Cabriolet

  Note

  • There are different versions of the receiver/dryer on this vehicle, depending on the condenser manufacturer. Refer to → Heating, Ventilation and Air Conditioning; Rep. Gr.87; System Overview - Refrigerant Circuit (vehicle-specific repair manual). The receiver/dryer may be attached to or integrated in the condenser, depending on the version of the condenser. The integrated receiver/dryer has a dryer cartridge that is no longer available as a replacement part. In the event there is a complaint on a vehicle with this condenser, the condenser must be completely replaced. Refer to the Parts Catalog.
  • If the receiver/dryer or dryer cartridge is integrated in the condenser, then it cannot be replaced separately or is not available as a single part, and the condenser must be replaced. Refer to → Heating, Ventilation and Air Conditioning; Rep. Gr.87; System Overview - Refrigerant Circuit (vehicle-specific repair manual) and the Parts Catalog.

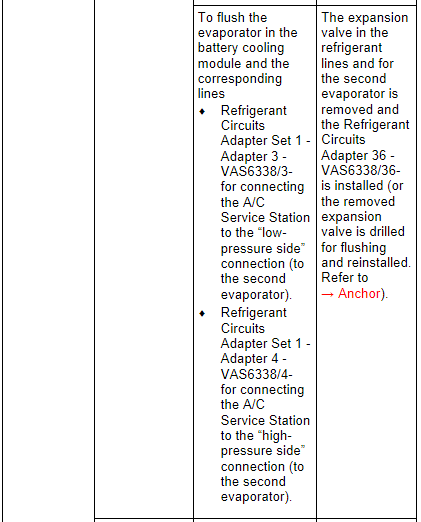

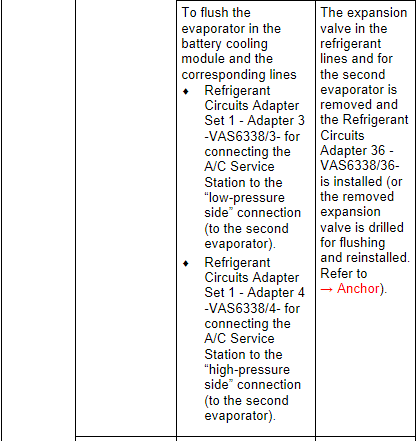

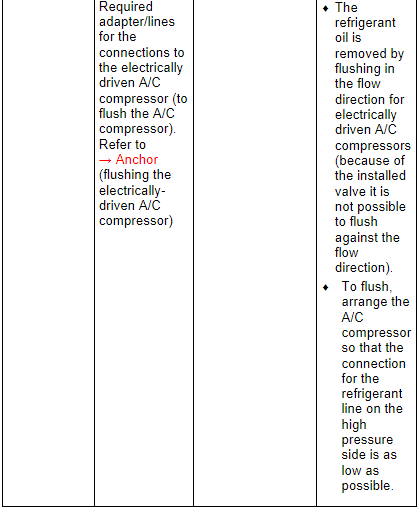

Audi Q5 Hybrid

Audi Q5 Hybrid

Audi Q5 Hybrid

Audi Q5 Hybrid

Audi Q5 Hybrid

  Note

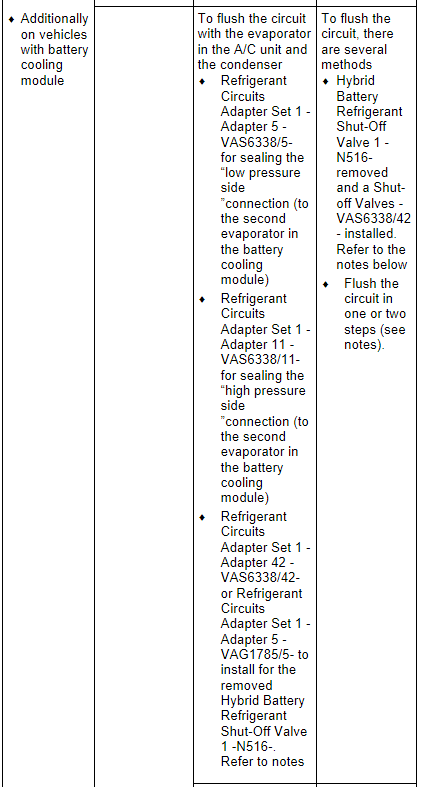

  • In vehicles with two evaporators, the refrigerant circuit is flushed in two/three work steps.
  • Currently the expansion valves on the evaporator in the A/C unit and on the evaporator in the battery cooling module have the same connections (only the control characteristics and those on the Hybrid Battery Refrigerant Shut-Off Valve 2 -N517- are different).
  • The refrigerant circuit cannot be rinsed with a Hybrid Battery Refrigerant Shut-Off Valve 1 -N516- installed in the circuit to the evaporator in the A/C unit. The Hybrid Battery Refrigerant Shut-Off Valve 1 -N516- is in a constricted location and prevents the refrigerant from reaching a sufficient flow speed. If a Shut-Off Valve -VAS6338/42- is available, install it for the Hybrid Battery Refrigerant Shut-Off Valve 1 -N516- and open. If the Shut-Off Valves -VAS6338/42- are not available, but there are two A/C Adapter Set - Adapters 5 -VAG1785/5- the circuit with the evaporator in the A/C unit can be rinsed in one work procedure (reassemble the circuit with a filler hose and two A/C Adapter Set - Adapters 5 -VAG1785/5-). If the Shut-Off Valves -VAS6338/42- is not available and there is only one A/C Adapter Set - Adapters 5 -VAG1785/5- available, the circuit must be flushed in two steps. From the low pressure connection on the A/C compressor via the evaporator in the A/C unit up to the connection for the removed Hybrid Battery Refrigerant Shut-Off Valve 1 -N516- and from the connection for the removed Hybrid Battery Refrigerant Shut-Off Valve 1 -N516- via the condenser to the high pressure connection on the A/C compressor.
  • There are different versions of the receiver/dryer on this vehicle, depending on the condenser manufacturer. Refer to → Heating, Ventilation and Air Conditioning; Rep. Gr.87; System Overview - Refrigerant Circuit (vehicle-specific repair manual). The receiver/dryer may be attached to or integrated in the condenser, depending on the version of the condenser. The integrated receiver/dryer has a dryer cartridge that is no longer available as a replacement part. In the event there is a complaint on a vehicle with this condenser, the condenser must be completely replaced. Refer to the Parts Catalog.
  • If the receiver/dryer or dryer cartridge is integrated in the condenser, then it cannot be replaced separately or is not available as a single part, and the condenser must be replaced. Refer to → Heating, Ventilation and Air Conditioning; Rep. Gr.87; System Overview - Refrigerant Circuit (vehicle-specific repair manual) and the Parts Catalog.

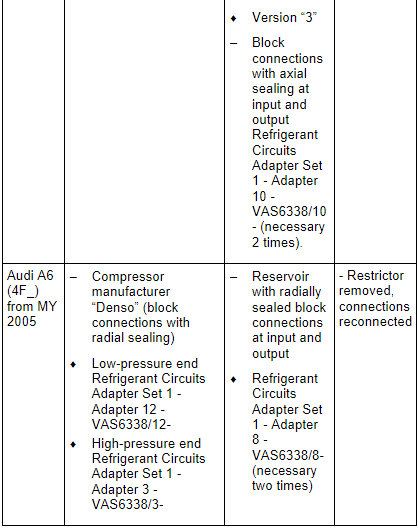

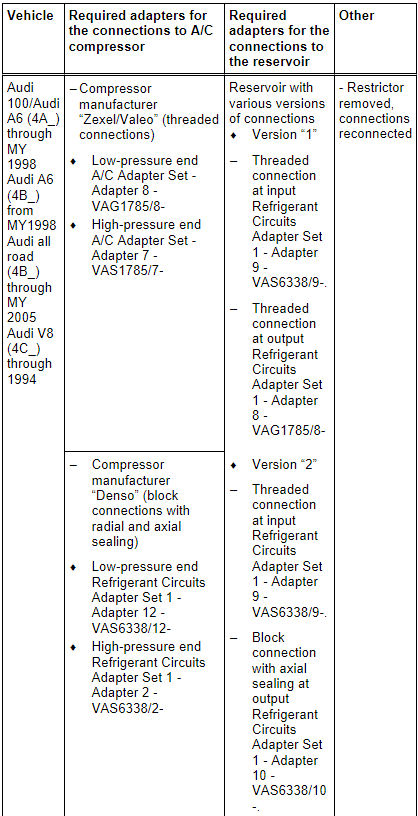

Audi 100, Audi A6 (4A_, 4B_ and 4F_), Audi allroad and Audi V8

Audi 100, Audi A6 (4A_, 4B_ and 4F_), Audi allroad and Audi V8

Audi 100, Audi A6 (4A_, 4B_ and 4F_), Audi allroad and Audi V8

  Note

The specifications for the Audi A6 (4F_) from MY 2005 also apply to the Audi S6 and Audi RS 6.

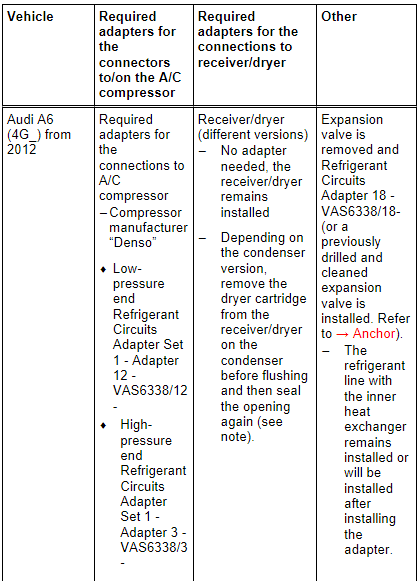

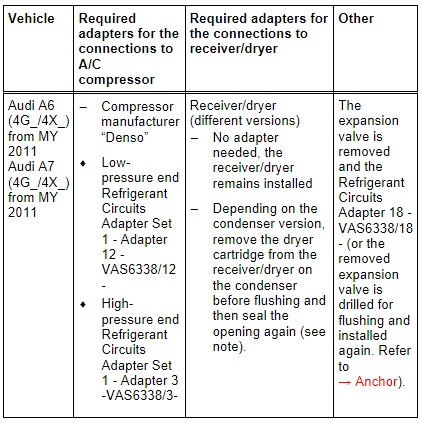

Audi A6 (4G_ or 4X_ for China), Audi A7 (4G_ or 4X_ for China)

Audi A6 (4G_ or 4X_ for China), Audi A7 (4G_ or 4X_ for China)

  Note

  • The type designation 4X_ is used instead of the type designation 4G_ for specific versions in China
  • There are different versions of the receiver/dryer on this vehicle, depending on the condenser manufacturer. Refer to → Heating, Ventilation and Air Conditioning; Rep. Gr.87; System Overview - Refrigerant Circuit (vehicle-specific repair manual) and the Parts Catalog.
  • If the receiver/dryer or dryer cartridge is integrated in the condenser, then it cannot be replaced separately or is not available as a single part, and the condenser must be replaced. Refer to → Heating, Ventilation and Air Conditioning; Rep. Gr.87; System Overview - Refrigerant Circuit (vehicle-specific repair manual) and the Parts Catalog.

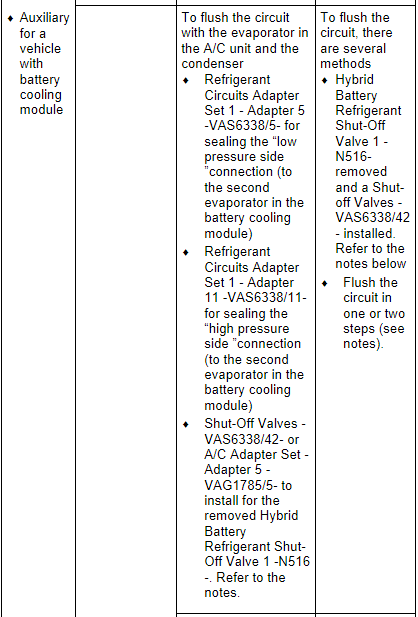

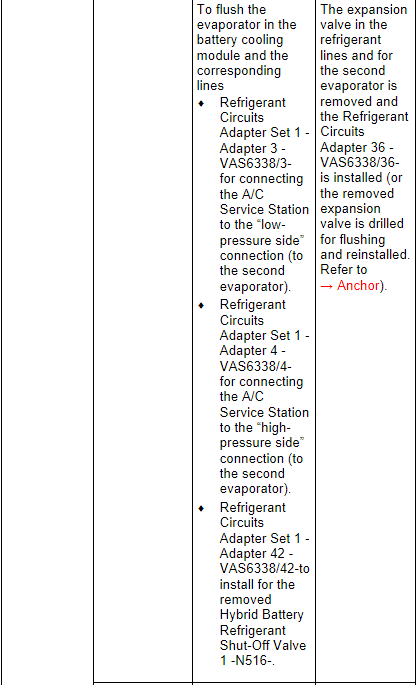

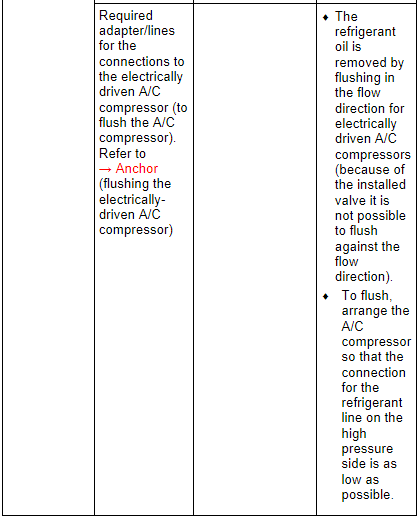

Audi A6 Hybrid

Audi A6 Hybrid

Audi A6 Hybrid

Audi A6 Hybrid

Audi A6 Hybrid

  Note

  • The type designation 4X_ is used instead of the type designation 4G_ for specific versions in China
  • In vehicles with two evaporators, the refrigerant circuit is flushed in two/three work steps.
  • Currently the expansion valve on the evaporator in the A/C unit and on the evaporator in the battery cooling module have the same connections (only the control characteristics and those on the Hybrid Battery Refrigerant Shut-Off Valve 2 -N517- are different).
  • The refrigerant circuit cannot be rinsed with a Hybrid Battery Refrigerant Shut-Off Valve 1 -N516- installed in the circuit to the evaporator in the A/C unit. The Hybrid Battery Refrigerant Shut-Off Valve 1 -N516- is in a constricted location and prevents the refrigerant from reaching a sufficient flow speed. If a Shut-Off Valve -VAS6338/42- is available, install it for the Hybrid Battery Refrigerant Shut-Off Valve 1 -N516- and open. If the Shut-Off Valves -VAS6338/42- are not available, but there are two A/C Adapter Set - Adapters 5 -VAG1785/5- the circuit with the evaporator in the A/C unit can be rinsed in one work procedure (reassemble the circuit with a filler hose and two A/C Adapter Set - Adapters 5 -VAG1785/5-). If the Shut-Off Valves -VAS6338/42- is not available and there is only one A/C Adapter Set - Adapters 5 -VAG1785/5- available, the circuit must be flushed in two steps. From the low pressure connection on the A/C compressor via the evaporator in the A/C unit up to the connection for the removed Hybrid Battery Refrigerant Shut-Off Valve 1 -N516- and from the connection for the removed Hybrid Battery Refrigerant Shut-Off Valve 1 -N516- via the condenser to the high pressure connection on the A/C compressor.
  • There are different versions of the receiver/dryer on this vehicle, depending on the condenser manufacturer. Refer to → Heating, Ventilation and Air Conditioning; Rep. Gr.87; System Overview - Refrigerant Circuit (vehicle-specific repair manual). The receiver/dryer may be attached to or integrated in the condenser, depending on the version of the condenser. The integrated receiver/dryer has a dryer cartridge that is no longer available as a replacement part. In the event there is a complaint on a vehicle with this condenser, the condenser must be completely replaced. Refer to the Parts Catalog.
  • If the receiver/dryer or dryer cartridge is integrated in the condenser, then it cannot be replaced separately or is not available as a single part, and the condenser must be replaced. Refer to → Heating, Ventilation and Air Conditioning; Rep. Gr.87; System Overview - Refrigerant Circuit (vehicle-specific repair manual) and the Parts Catalog.
  • On the Audi A6 hybrid it can be helpful to remove both refrigerant lines in the engine compartment from the inner heat exchanger to flush the components in the battery cooling module and the related refrigerant lines. Then the necessary adapter and related refrigerant hoses can be installed and remove more easily. Refer to → Heating, Ventilation and Air Conditioning; Rep. Gr.87; Refrigerant Circuit; System Overview - Refrigerant Circuit.
  • If on the Audi A6 hybrid the knurled nut of the filler hose on the refrigerant line to the evaporator in the battery cooling module installed Refrigerant Circuits Adapter Set 1 - Adapter 3 -VAS6338/3- cannot be installed on the connection (depending of the tolerance on the separation of the refrigerant pipe on the connection) the refrigerant pipe can be carefully bent approximately 1 mm to the side.

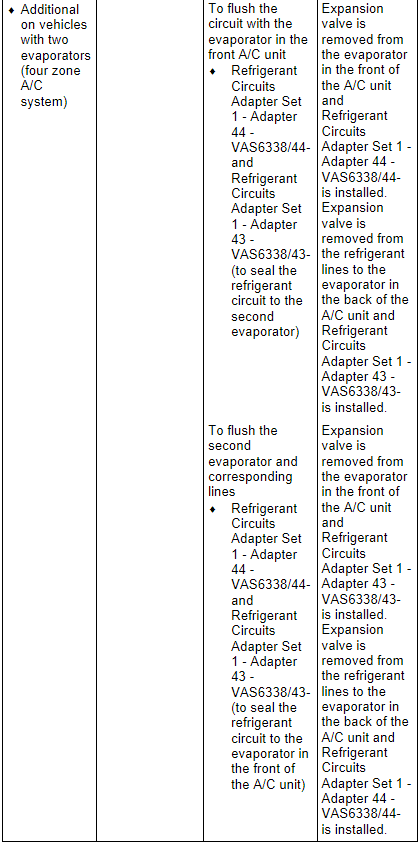

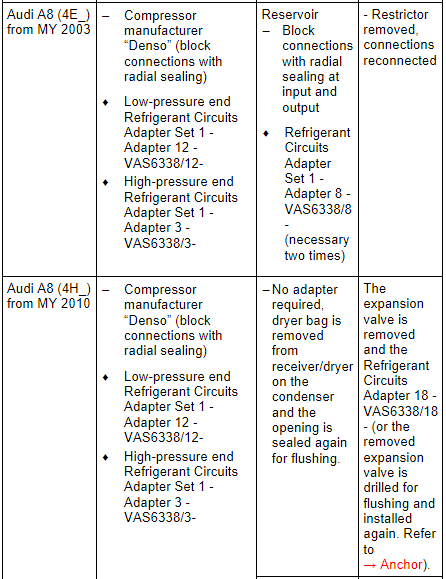

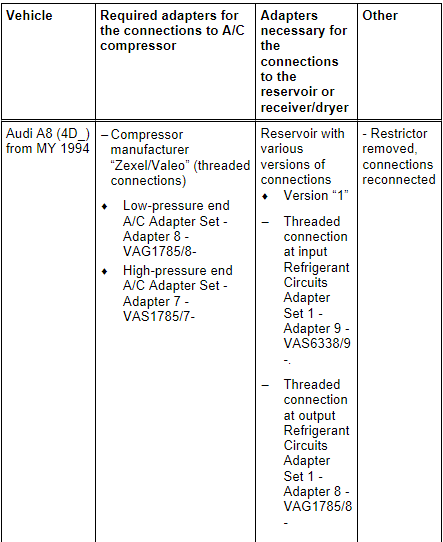

Audi A8

Audi A8

Audi A8

Audi A8

Audi A8

Audi A8

Audi A8

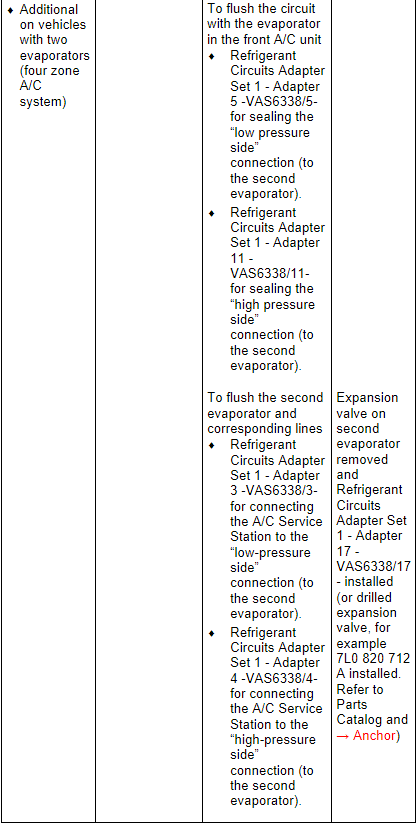

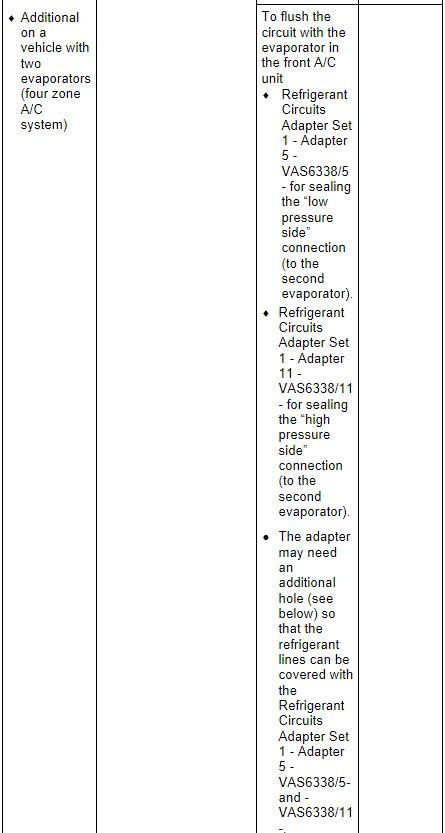

  Note

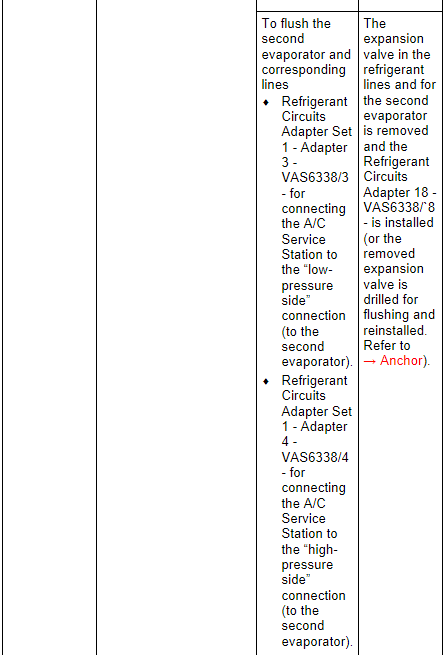

  • In vehicles with two evaporators, the refrigerant circuit is flushed in two work steps.
  • Currently the front and rear expansion valves have the same connections (only the control characteristics are different)

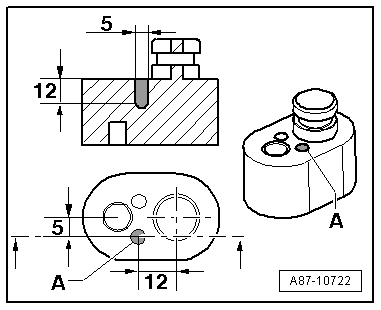

Drill an additional hole in the Refrigerant Circuits Adapter Set 1 - Adapter 5 -VAS6338/5- and -VAS6338/11-.

- Drill a hole -A- in addition to the already existing hole (the dimensions in the illustration are given in mm).

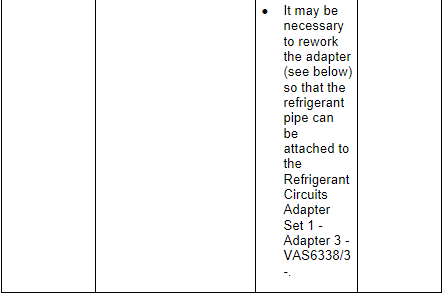

Rework the Refrigerant Circuits Adapter Set 1 - Adapter 3 -VAS6338/3-

A87-10722

- Sand off or file off the Refrigerant Circuits Adapter Set 1 - Adapter 3 -VAS6338/3- near -A- without bending the refrigerant pipe (dimensions are in mm).

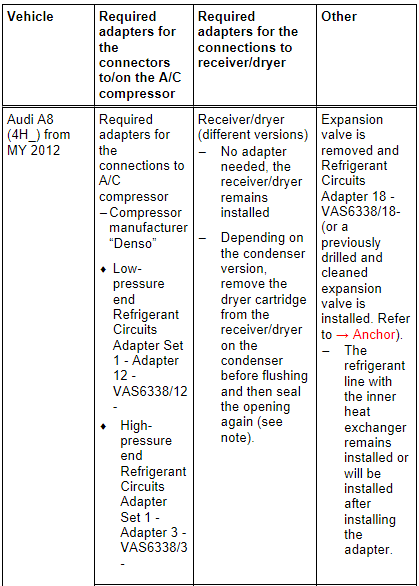

Audi A8 Hybrid

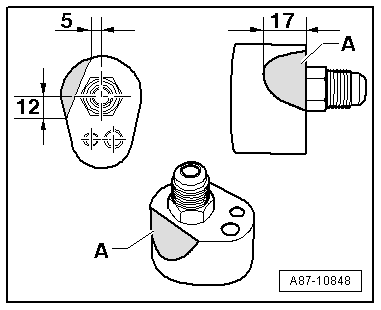

A87-10848

Audi A8 Hybrid

Audi A8 Hybrid

Audi A8 Hybrid

Audi A8 Hybrid

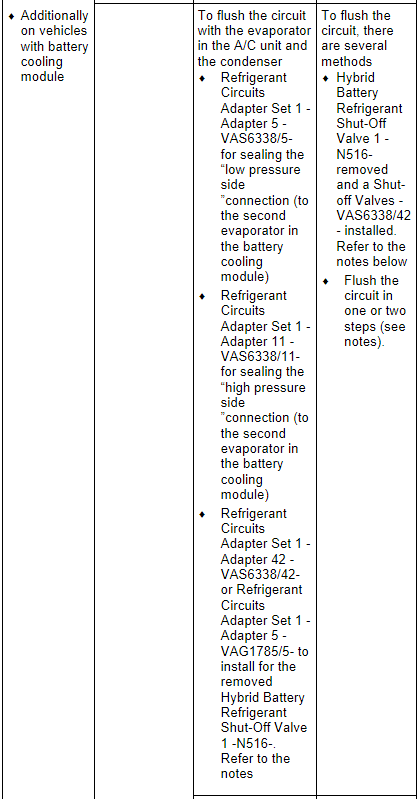

  Note

  • In vehicles with two evaporators, the refrigerant circuit is flushed in two/three work steps.
  • Currently the expansion valve on the evaporator in the A/C unit and on the evaporator in the battery cooling module do not have the same connections.
  • The refrigerant circuit cannot be rinsed with a Hybrid Battery Refrigerant Shut-Off Valve 1 -N516- installed in the circuit to the evaporator in the A/C unit. The Hybrid Battery Refrigerant Shut-Off Valve 1 -N516- is in a constricted location and prevents the refrigerant from reaching a sufficient flow speed. If a Shut-Off Valve -VAS6338/42- is available, install and open it for the Hybrid Battery Refrigerant Shut-Off Valve 1 -N516-. If the Shut-Off Valve -VAS6338/42- is not available, but there are two A/C Adapter Set - Adapters 5 -VAG1785/5- and the circuit with the evaporator in the A/C unit can be rinsed in one work procedure (reassemble the circuit with a filler hose and two A/C Adapter Set - Adapters 5 -VAG1785/5-). If the Shut-Off Valves -VAS6338/42- is not available and there is only one A/C Adapter Set - Adapters 5 -VAG1785/5- available, the circuit must be flushed in two steps. From the low pressure connection on the A/C compressor via the evaporator in the A/C unit up to the connection for the removed Hybrid Battery Refrigerant Shut-Off Valve 1 -N516- and from the connection for the removed Hybrid Battery Refrigerant Shut-Off Valve 1 -N516- via the condenser to the high pressure connection on the A/C compressor.
  • There are different versions of the receiver/dryer on this vehicle, depending on the condenser manufacturer. Refer to → Heating, Ventilation and Air Conditioning; Rep. Gr.87; System Overview - Refrigerant Circuit (vehicle-specific repair manual). The receiver/dryer may be attached to or integrated in the condenser, depending on the version of the condenser. The integrated receiver/dryer has a dryer cartridge that is no longer available as a replacement part. In the event there is a complaint on a vehicle with this condenser, the condenser must be completely replaced. Refer to the Parts Catalog.
  • If the receiver/dryer or dryer cartridge is integrated in the condenser, then it cannot be replaced separately or is not available as a single part, and the condenser must be replaced. Refer to → Heating, Ventilation and Air Conditioning; Rep. Gr.87; System Overview - Refrigerant Circuit (vehicle-specific repair manual) and the Parts Catalog.

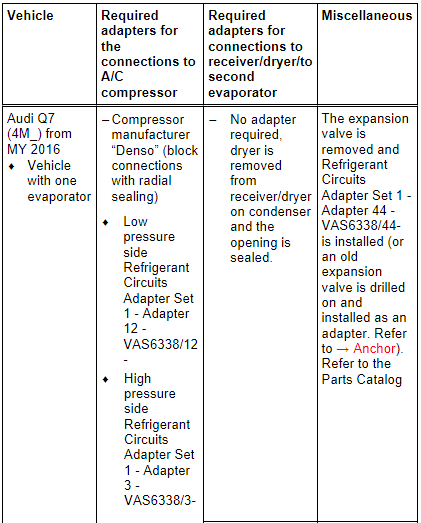

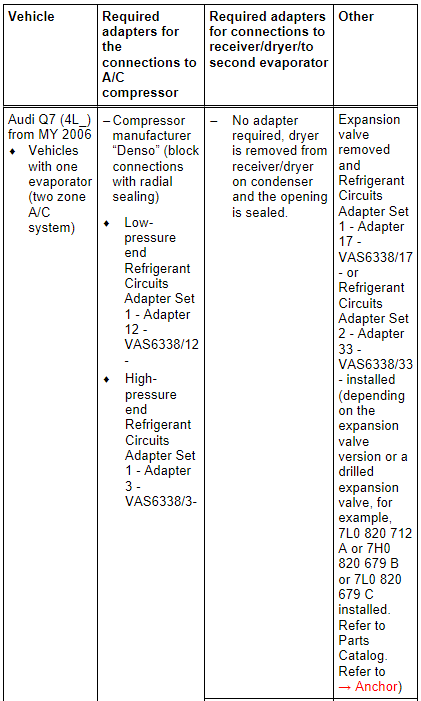

Audi Q7, Audi Q7 e-tron

Audi Q7, Audi Q7 e-tron

Audi Q7, Audi Q7 e-tron

  Note

In vehicles with two evaporators, the refrigerant circuit is flushed in two work steps.

Audi Q7, Audi Q7 e-tron

Audi Q7, Audi Q7 e-tron
