Audi A4: Technical data

Identification data

Vehicle data label

Technical data

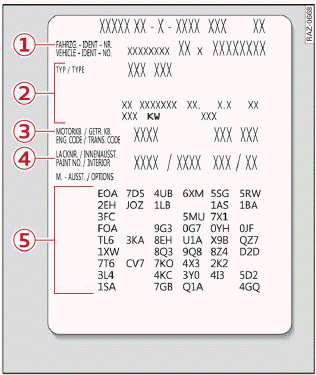

Fig. 188 Vehicle identification label

The vehicle identification label > fig. 188 is located in the luggage compartment under the cargo floor cover.

The vehicle identification label information can also be found in the Warranty & Maintenance booklet.

The sticker contains the following vehicle data:

  1. Vehicle Identification Number (VIN)
  2. Vehicle type, motor output, transmission
  3. Motor and transmission codes
  4. Paint and interior codes
  5. Optional equipment numbers

Vehicle identification number (VIN)

The VIN is located in the following areas:

  • Applies to MMI: Select on the home screen: VEHICLE > Settings & Service > Vehicle information.
  • On the vehicle identification label
  • At the front behind the windshield*
  • Stamped into the motor compartment on the right side

Notes about technical data

The values may vary based on special equipment as well as market-specific equipment and measuring methods.

Please note that the specifications listed in the vehicle documentation always take precedence.

Tips

Any technical data that is missing was not available at the time of printing.

Vehicle data

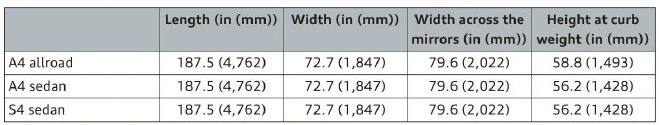

Dimensions

Capacities

A/C system refrigerant oil

The exact type and amount of refrigerant oil in the A/C system is specified on the sticker on the refrigerant compressor.

Weights

Technical data
Applies to: sedan
Fig. 189 Safety certificate

Technical data
Applies to: allroad

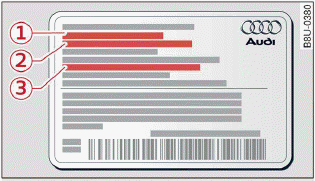

Fig. 190 Safety certificate

Gross Vehicle Weight Rating (GVWR)

The maximum permitted total weight (1) of the vehicle is listed on the safety certificate on the side area of the door or on the driver's door pillar.

Gross Axle Weight Rating (GAWR)

The maximum permitted load on the front axle (2) or the rear axle (3) is listed on the safety certificate on the side area of the door or on the driver's door pillar.

Load

The maximum permitted load is listed on the tire pressure label on the driver's door pillar.

Roof load

The maximum permitted roof load is 198 lbs (90 kg).
