Audi A4: Adjusting the display

Audi A4 (B9) 2016-2024 Owner's Manual / Display and operation / Instrument cluster / Adjusting the display

Instrument cluster

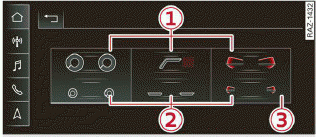

Fig. 6 Center display: adjusting the display

Switching the view

Applies to: Audi virtual cockpit

  • Press the VIEW button to switch between the default view (1) and the enhanced view (2).

Adjusting the layout

Applies to: Audi virtual cockpit

Depending on the vehicle equipment, various layouts may be available.

  • Applies to: MMI: Select on the home screen: SETTINGS > Display & brightness > Audi virtu- al cockpit.
  • To adjust the desired layout, press (3).

Adjusting the additional display

Applies to: Audi virtual cockpit

Depending on the vehicle equipment, the additional displays that can be selected may vary.

  • Applies to: MMI: Select on the home screen: SETTINGS > Display & brightness > Audi virtual cockpit > Configure.
  • Select the desired additional display.

Reducing the display

Depending on the vehicle equipment, you can hide the central area in the instrument cluster.

  • Select on the instrument cluster: vehicle functions tab > button > Reduced display, or
  • Press the VIEW button on the multifunction steering wheel.
