Audi A4: General information
Selecting the radio

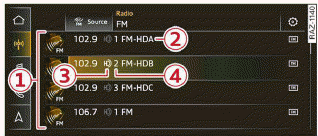

Fig. 148 Center display: FM station list

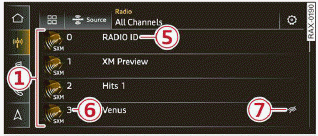

Fig. 149 Center display: SiriusXM station list
Depending on the vehicle equipment, the radio
may support the FM, AM, and SiriusXM (satellite
radio) frequency bands. Using the HD Radio receiver*
also allows you to receive radio stations
on the FM and AM bands in digital format.
Depending on the vehicle equipment and the selected
station list, the following information will
be displayed:
- Station list
Shows the stations that are currently available.
The station list updates automatically.
- Stations
For example, the station name may be displayed
depending on availability.
- HD Radio technology
FM/AM stations that can be received by digital
radio are marked with the HD Radio technology
symbol .
If reception quality declines, the radio automatically
switches to the analog FM/AM station
depending on availability.
- Additional audio programs
Digital HD Radio stations may contain multiple
additional audio programs. If you lose reception,
the additional audio programs will be muted since they can no longer be
received.
- Radio ID
Your radio ID and contact data for your satellite
radio provider are displayed.
- Channel number
No reception
The station cannot be received.
In addition to the symbols for the usual frequency
bands, the following information may also be
available depending on vehicle equipment:
The station provides information
in
the background for an online station
alternative. Online station tracking
must be switched on for this.
The station is received through
the Internet.
The system attempts to receive
the
station/podcast through the Internet.
Tips
- Contact the SiriusXM* provider if you would
like to receive satellite programming.
- Buildings, tunnels, bridges, open areas, other
vehicles or objects on the vehicle roof can
affect reception.
- Satellite radio* is not available in all regions.
Adjusting the radio using the MMI
- Applies to: MMI: To set a frequency band, select
on the home screen: RADIO > Source a category.
- Applies to: MMI: To set a station, select on the
home screen: RADIO > Source > a category > a
station/podcast*.
- To select a frequency, follow the instructions
under.
Adjusting the radio using the multifunction steering wheel
Requirement: radio mode must be on.
- Select the radio/media tab in the instrument cluster.
- Press the button to toggle
between the radio
and media or to select a different source.
- To select a station or a source, turn and press the left thumbwheel.
Tips
Applies to: multifunction steering wheel: Depending on the selected function,
operation through the MMI may be required.
