Audi A4: Select destination

Applies to: vehicles with navigation system

Navigation

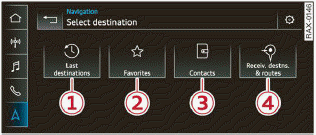

Fig. 141 Menu: select destination

Opening a menu

  • Applies to: MMI: Press NAVIGATION on the home screen.
  • If the map is displayed, press (1) fig. 140.

The following functions are available:

  1. Last destinations
  2. Favorites
  3. Contacts
  4. Received destinations and routes

Loading previous destinations

Applies to: vehicles with navigation system

Your last destinations and routes can be loaded as a navigation destination.

As soon as you start route guidance, the destination is automatically saved in the last destinations.

Your previous destinations are marked with the symbol.

If you use myAudi navigation, your previous destinations will be synchronized with your myAudi account.

Accessing previous destinations

  • Applies to: MMI: Select on the home screen: NAVIGATION > () > Last destinations > select a destination > Start.
  • Select in the instrument cluster: Navigation tab > ) button > Last destinations > a destination.

Deleting previous destinations

  • Applies to: MMI: Select on the home screen: NAVIGATION > () > Last destinations > > select one or more entries or Select all > Delete > (Done).

Tips

The last route will be automatically deleted from the list if you start a new route guidance after canceling the route.

Setting a favorite as the destination

Applies to: vehicles with navigation system

In the favorites, you can call up frequently-used destinations as well as your home/business address.

Requirement: a favorite must be stored.

  • Applies to: MMI: Select on the home screen: NAVIGATION > () > Favorites > select a destination.
  • Select in the instrument cluster: Navigation tab > button > Favorites > a destination.

Selecting contacts as destinations

Applies to: vehicles with navigation system

You can navigate to contacts.

Requirement: a contact must have an address stored.

  • Applies to: MMI: Select on the home screen: NAVIGATION > () > Contacts > a contact.
  • Press on the address for a contact.
  • Press on a suggested address. The Details menu will be displayed.

Tips

  • If a contact is grayed out, there is no address stored for that contact.
  • Navigation to geographical coordinates for a contact is not possible.

Loading received destinations and routes

Applies to: vehicles with myAudi navigation

You can search for destinations or routes in the myAudi app and send to the vehicle.

Requirement: the MMI and the mobile device must be connected to the Internet. You must have the myAudi app installed on your mobile device.

  • Send a destination or route in the myAudi app to the vehicle.
  • Applies to: MMI: Select on the home screen: NAVIGATION > () > Received destinations and routes.
  • Make sure you are logged into the vehicle and the myAudi app with the same myAudi account.

    The received destination and routes will be loaded automatically.

  • Navigating to a destination: press on a destination.
  • Deleting destinations: select: > one or more entries or Select all > Delete > (Done).

Destination details

Applies to: vehicles with navigation system

Navigation

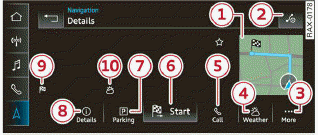

Fig. 142 Details

After you have selected a destination, the details will be displayed. Route guidance is will not be active yet.

The functions depend on the vehicle equipment and the selected destination.

  1. Map preview: to zoom in on the map preview, press on the map
  2. Route criteria
  3. More: additional functions
  4. Weather: Requirement: the MMI must be connected to the Internet
  5. Call: Requirement: a mobile device must be connected to the MMI. You will make a call to the phone number that is stored for the destination.
  6. Start: starts navigation to the displayed destination.

    The map will be displayed

  7. Parking: press Parking to search for a parking space at the destination. You can use the parking space as a destination or stopover
  8. Details: Requirement: the MMI must be connected to the Internet
  9. Display of distance/driving time to the destination
  10. Weather at the destination: Requirement: the MMI must be connected to the Internet

Selecting a destination from the map

Applies to: vehicles with navigation system

A point on the map can be used as the destination.

Opening the map

  • Applies to: MMI: Press NAVIGATION on the home screen.
  • If necessary, press to display the map.

Adjusting the scale

  • Select: select a scale.

Marking the destination

  • Press and hold a point on the map until a marking appears or the address for the selected destination is shown.

Selecting map content (such as POIs) as the destination

Requirement: map content must be displayed.

  • Press on map content on the map (for example,)

Selecting the destination

  • Select: > Start.

Stopovers and route plan

Applies to: vehicles with navigation system

You can enter additional destinations during active route guidance.

Entering a stopover

Requirement: route guidance must be active.

  • Enter a destination

Displaying stopovers or the route plan

All destinations are listed in the route plan.

  • Press on Pin the side menu on the map fig. 143.

Editing stopovers

  • Press on Pin the side menu on the map fig. 143.
  • Adding a stopover: Select: Add destination > select a destination > Add to route.
  • Moving a stopover: press . Touch the symbol and move the entry to the desired position.

    Press Done.

  • Deleting a stopover: Select: > one or more entries or Select all > Delete > (Done).

Stopping route guidance

Applies to: vehicles with navigation system

Requirement: route guidance must be active and the map must be displayed.

  • Applies to: MMI: Press fig. 143.
  • Select in the instrument cluster: Navigation tab > button > Cancel route guidance.
