Audi A4: Windshield wipers

Switching the windshield wipers on

Lights and Vision

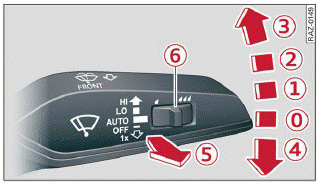

Fig. 51 Lever: windshield wipers

Lights and Vision

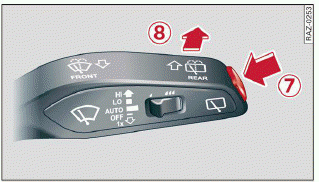

Fig. 52 Lever: rear window wiper (allroad)

Move the lever to the corresponding position:

(0) Windshield wipers off

(1) Rain sensor/intermittent mode. The windshield wipers switch on once the vehicle speed exceeds approximately 2 mph (4 km/h) and it is raining. The higher the sensitivity of the rain sensor that is set (switch (6) to the right), the earlier the windshield wipers react to moisture on the windshield. You can deactivate the rain sensor mode, which switches the interval mode on. In intermittent mode, you can adjust the interval time using the switch (6).

  • Applies to: MMI: Select on the home screen: VEHICLE > Light & Visibility > Rain sensor.

(2) Slow wiping

(3) Fast wiping

(4) Single wipe. If you hold the lever in this position longer, the wipers switch from slow wiping to fast wiping.

(5) Clean the windshield. The number of wipes and afterwipes depends on how long the lever is held in position (5).

The wipers wipe one time after several seconds of driving to remove water droplets. You can switch this function off by moving the lever to position (5) within ten seconds of the afterwipe. The afterwipe function is reactivated the next time you switch the ignition on.

If you hold the Lever in position (5) for longer than half a second, the edge wiping feature will be activated. This moves the windshield wipers closer to the edge of the windshield and performs an afterwipe to clean the residue that results from the wiping process from the edge of the windshield. The function is available when driving at speeds up to 75 mph (120 km/h).

The headlight washer system* operates only when the low beam headlights are on. If you move the lever into position (5), the headlights will be cleaned at fixed intervals.

Applies to: vehicles with rear window wiper: (7)

Wiping the rear window . The number of wipes depends on the windshield wiper movement.

The rear wiper automatically switches on when the reverse gear is selected and the front windshield wipers are on and running.

Applies to: vehicles with rear window wiper: (8) - Cleaning the rear window . The number of wipes depends on how long the Lever is held in position (8).

This may also clean the rearview camera, depending on the vehicle equipment.

WARNING

  • The rain sensor is only intended to assist the driver. The driver may still be responsible for manually switching the wipers on based on visibility conditions.
  • The windshield must not be treated with water-repelling windshield coating agents.

    Under unfavorable conditions, such as wetness, darkness, and when the sun is low, these coatings can cause increased glare, which increases the risk of an accident. They can also cause wiper blade chatter.

  • Properly functioning windshield wiper blades are required for a clear view and safe driving, Cleaning/changing wiper blades.

Note

  • If there is frost, make sure the windshield wiper blades are not frozen to the windshield.

    Switching on the windshield wipers when the blades are frozen to the windshield can damage the wiper blades.

  • Prior to using a car wash, the windshield wiper system must be switched off (lever in position (0) ). This prevents the wipers from switching on unintentionally and causing damage to the windshield wiper system.

Tips

  • The windshield wipers switch off when the ignition is switched off. You can activate the windshield wipers after the ignition is switched on again by moving the lever to any position. The single wipe function (lever in position (4) also functions when the ignition is switched off.
  • Worn or dirty windshield wiper blades result in streaking. This can affect the rain sensor function. Check your windshield wiper blades regularly.
  • The washer fluid nozzles for the windshield washer system are heated when the ignition is on if the outside temperature is low.
  • When stopping temporarily, such as at a traffic light, the speed of the windshield wipers automatically reduces by one level.

Cleaning/changing wiper blades

Lights and Vision

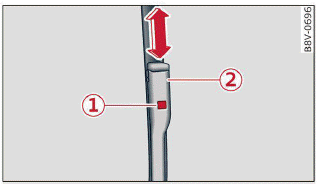

Fig. 53 Windshield wipers: changing the wiper blades

Wiper blade replacement position

  • Switch off the ignition and hold the windshield wiper lever in position (4), fig. 57 until the windshield wiper moves into the wiper blade replacement position.
  • To bring the windshield wipers into the normal position, switch the ignition on and hold the lever in position (4) until the windshield wipers go back to the original position, or drive faster than 8 mph (12 km/h).

You can also turn the wiper blade replacement position on or off in the MMI:

  • Switch the windshield wipers off (position (0), fig. 57).
  • Applies to MMI: Select on the home screen: VEHICLE > Settings & Service > Wiper change position.

Cleaning the wiper blades

Requirement: the windshield wipers must be in the wiper blade replacement position.

  • Fold the windshield wiper arm away from the windshield.
  • For information on cleaning.

Replacing the wiper blades

Requirement: the windshield wipers must be in the wiper blade replacement position.

  • Fold the windshield wiper arm away from the windshield.
  • Hold the wiper blade firmly.
  • Press the locking knob (1) on the wiper blade.
  • Remove the wiper blade from the windshield wiper arm mount (2).
  • Insert the new wiper blade into the mount on the wiper arm until it clicks into place.
  • Place the wiper arm back on the windshield.
  • Exit the wiper blade replacement position.

WARNING

  • For safety reasons, the windshield wiper blades should be replaced once or twice each year.
  • Dirty windshield wiper blades can impair vision, which increases the risk of an accident.

Note

  • The windshield wipers must only be lifted up when in the wiper blade replacement position.

    Otherwise, you risk damaging the paint on the hood or the windshield wiper motor.

  • You should not move your vehicle or press the lever when the wiper arms are folded up from the windshield. The windshield wipers would move back into their original position and could damage the hood and windshield.

Tips

  • You can also use the wiper blade replacement position for other reasons, for example if you want to protect the windshield from icing by using a cover.
  • You cannot activate the wiper blade replacement position when the hood is open.

Cleaning/changing the rear wiper blade

Applies to: vehicles with rear window wiper

Lights and Vision

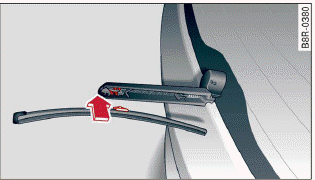

Fig. 54 Rear window wiper: installing the wiper blade

Cleaning the wiper blades

  • Fold the wiper arm away from the rear window.
  • For information on cleaning.

Removing the wiper blade

  • Fold the wiper arm away from the rear window.
  • Remove the wiper blade from its holder.

Installing the wiper blade

  • Press the wiper blade mount into the retainer.
  • Fold the window wiper arm back onto the rear window.

WARNING

For safety reasons, the windshield wiper blades should be replaced once or twice each year.

Messages

The following messages may appear depending on the vehicle equipment:

If the indicator light turns on, then there is a windshield wiper malfunction. The message that is also displayed indicates the cause and possible solutions. If one of the messages does not turn off, drive immediately to an authorized Audi dealer or authorized Audi Service Facility to have the malfunction repaired.

Automatic wipers: malfunction! See owner's manual

The light/rain sensor is malfunctioning. You can still control all functions that are not controlled by the rain sensor using the windshield wiper lever.

Drive immediately to an authorized Audi dealer or authorized Audi Service Facility to have the malfunction repaired.
