Audi A4: Distance warning

Description

Applies to: vehicles with distance warning

Driver assistance
Applies to: vehicles with adaptive cruise control:
Fig. 117 Instrument cluster: display of the current distance

Driver assistance
Applies to: vehicles with Audi adaptive cruise control

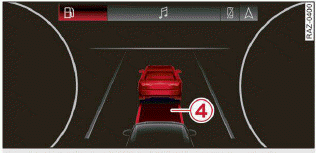

Fig. 118 Instrument cluster: distance warning

General information

At speeds above approximately 40 mph (65 km/h), this function measures the distance to the vehicle ahead as time. If the distance falls below the warning threshold and remains there, the system will warn you of the hazard with the indicator light.

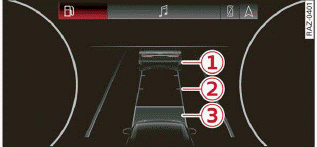

Image in the Driver assistance display

Applies to: vehicles with Audi adaptive cruise control

The display only appears if the Driver assistance display is selected in the trip computer and the adaptive cruise control is not actively controlling the vehicle.

  1. Detected vehicle driving ahead
  2. Use the markings to help you estimate the distance to an obstacle. Each marking represents approximately one second.
  3. Set warning threshold. Depending on the settings, the display will be colored in from the bottom to the top.
  4. The actual distance is smaller than the set distance and you will be informed about the danger.

Adjusting the distance warning

You can turn the distance warning on or off in the MMI, or adjust it to your preference. The settings depend on the vehicle equipment.

  • Applies to: MMI: Select on the home screen: VEHICLE > Driver assistance > Distance warning.

Possible settings:

  • Warning threshold

Messages

If or is displayed when there is a malfunction, the distance warning functions may be unavailable or may be limited.

A message that indicates the cause and possible solution may appear with some displays. The weather conditions may be too poor or a sensor may be covered. Clean the area in front of the sensors and try to turn the system on again later.

If the malfunction remains, drive to an authorized Audi dealer or authorized Audi Service Facility immediately to have the malfunction corrected.

WARNING

Observe the safety precautions and note the limits of the assist systems, sensors, and cameras.

Tips

  • The driver is always responsible for adhering to the regulations applicable in the country where the vehicle is being operated.
  • You may fall below the warning threshold briefly when passing or when quickly approaching a vehicle driving ahead. There is no warning in this scenario. A warning is given only if you fall below the warning threshold for an extended period of time.
