Audi A4: Menus and symbols

Multi Media Interface

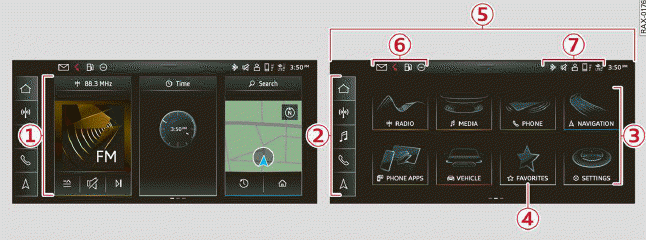

Fig. 15 MMI: center display

  1. Overview screen
    • Displays selected information tiles and provides quick access to certain functions
  2. Quick access bar
    • Return to the home screen or the overview page, open menus quickly
  3. Display area
    • Select a menu, apply settings, display content
  4. Favorites
    • Use or manage favorites
  5. -  7.  Status bar
    • Operate functions and apply quick settings, display of available notifications 6, status indicator 7, time

Description of common symbols

You can operate the default functions using the symbols that follow. The symbols may be found in any menu, depending on the context.

Go back one level

Close the menu

Search for content

Open explanations for a menu

Open settings for the selected menu

Open the submenu

Adjust the settings

Set as favorite

Switch functions on or off

Switch functions on or off

Switch functions on or off

Open additional actions

Open additional information for the selected menu

Overview screen

The overview screen is the first menu page in the MMI. Information about certain vehicle functions such as media, time, and phone is displayed in tiles. The available information tiles can be rearranged on the overview screen or replaced with others. Depending on the system context, you may be able to operate certain functions directly, such as muting the sound.

Switching between the overview screen and the home screen

  • Press repeatedly until the desired view appears.

Configuring the overview screen

  • Press and hold an information tile on the overview screen.
  • To change the position of an information tile, press and hold it and then slide it to the desired position.
  • To replace an information tile, press and select the desired information tile.
  • Press Done to complete the configuration.

Quick access

With quick access, you can return to the home screen and quickly switch between four menus that can be configured according to your preferences.

Returning to the home screen or opening a menu quickly

  • Press or one of the four buttons.

Configuring quick access

  • Press and hold a button on the home screen display area or in the quick access bar.
  • To move a button to the quick access bar, pull it from the display area to the quick access bar.
  • To adjust the placement of the buttons in the quick access bar, pull them to the desired position in the bar.
  • Press Done to complete the configuration.

Tips

The position of cannot be adjusted.

Display area

You can freely change the location of the buttons on the home screen display area.

Configuring the display area

  • Press and hold a button on the home screen display area.
  • To adjust the placement of the buttons, pull them to the desired locations.
  • Press Done to complete the configuration.

Switching between menu pages

If a menu contains multiple menu pages, is displayed in the display area. The white bar shows the location of the current menu page.

  • To switch between menu pages, swipe your finger to the right or left.

Favorites

By creating favorites, you can have quick access to various items, such as radio stations, frequently-used contacts, or vehicle settings. In the FAVORITES menu, the stored favorites are sorted by topic into information tiles.

Adding a favorite

A button indicates if you can add a favorite, such as a selected radio station. Depending on the context, you may also be able to add items without the button to the favorites, such as entries in a list.

  • Press , or
  • Press and hold an item in a list.
  • Press Store as favorite. The selected item will be added as a favorite.

Using favorites

  • Applies to: MMI: Select on the home screen: FAVORITES.

    The stored favorites will be displayed.

  • To access a stored favorite, press that favorite.

Stored favorites can only be deleted or configured in the corresponding menu (such as RADIO).

Arranging information tiles

  • Applies to: MMI: Select on the home screen: FAVORITES.
  • Press and hold the desired information tile.
  • Pull the information tile into the desired position.
  • Press Done to confirm the configuration.
