Instrument cluster

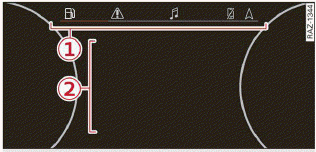

Fig. 4 Driver information system display

Instrument cluster

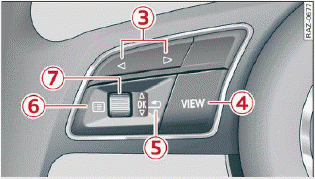

Fig. 5 Left side of multifunction steering wheel

Information is organized within various tabs (1) in the instrument cluster. The tab contents are displayed in the central area (2).

Requirement: the ignition must be switched on.

Selecting a tab

  • Press the button (3) repeatedly until the desired tab is selected.

Returning to functions at higher levels

  • Press the button (5).

Opening and closing the menu

  • Press the button (6).

Selecting and confirming a function

Requirement: a menu or list must be displayed.

  • To select a function, turn the left thumbwheel (7) to the desired function.
  • To confirm a selection, press the left thumbwheel (7).

Switching the view

  • Press the VIEW button (4).

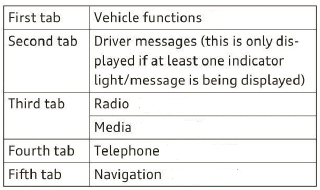

The following tabs may be available, depending on vehicle equipment:
