Audi A4: Seat Heating Element, Removing and Installing

Audi A4 (B9) 2016-2024 Service Manual / Body / Body Interior / Seat Upholstery, Covers / Seat Heating Element, Removing and Installing

Removing

- Separate the cover and cushion. Refer to → Chapter "Cover and Cushion, Separating, Bench Seat".

- Disconnect the wire -3- directly from the old heating element -1-.

  Note

The old heating elements remain on the cushion and will be covered over by the new heating element.

Installing

- Align the new heating elements on the cushion -2-.

- Remove the protective films from the heating elements in succession, taking care not to damage the heating elements.

- Glue the heating elements so that they align with the old heating elements and are free of wrinkles.

- Route the connecting wires to the individual heating elements in the base of the gaps.

Further installation is the reverse order of removal.

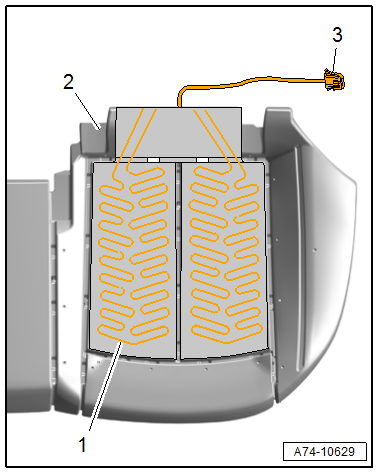

A74-10629

Backrest Heating Element, Removing and Installing

Removing

- Separate the cover and cushion. Refer to → Chapter "Cover and Cushion, Separating, Outer Folding Backrest".

- Disconnect the wire -3- directly from the old heating element -1-.

  Note

The old heating elements remain on the cushion and will be covered over by the new heating element.

Installing

- Align the new heating elements on the cushion -2-.

- Peel the protective film off the heating element. Be careful not to damage the heating element.

- Glue the heating element so that they align with the old heating element and are not wrinkled.

Further installation is the reverse order of removal.

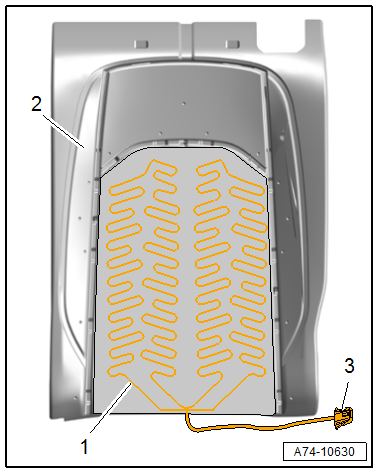

A74-10630

Special Tools

Special tools and workshop equipment required

  • Wedge Set -T10383-
  • Wedge Set - Wedge 1 -T10383/1-

W00-11251

  • Hook Tool -T40207-

W00-11555

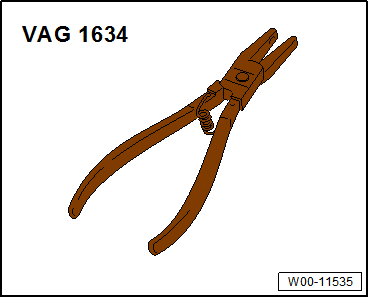

  • Upholstery Clip Pliers -VAG1634-

W00-11535

  • Pry Lever -80-200-

W00-11156

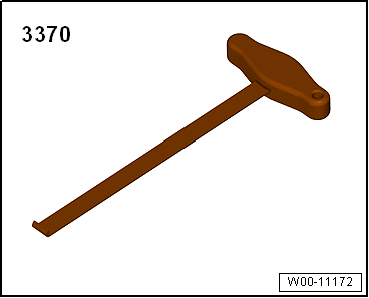

  • Backrest Panel Tool -3370-

W00-11172

  • Trim Removal Wedge -3409-
  • Not illustrated:
  • Engine/Transmission Holder - Seat Repair Fixture -VAS6136-

W00-11118
