Audi A4: Power windows

Opening and closing the windows

Opening and closing

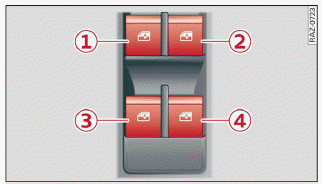

Fig. 39 Driver's door: power window switch

Power window switches:

  1. Left front door
  2. Right front door
  3. Left rear door
  4. Right rear door

Opening and closing the windows

The driver can control all power windows. All power window switches are equipped with a twostage function:

  • To open or close the window completely, press the switch down or pull the switch up briefly to the second level. The operation will stop if the switch is pressed or pulled again.
  • To select a position in between opened and closed, press or pull the switch to the first level until the desired window position is reached.

Correcting a malfunction in the one-touch up/down function

If necessary, you can reactivate the one-touch up/ down function if it malfunctions.

  • Pull the power window switch up until the window is completely raised.
  • Release the switch and pull it up again for at least one second.

WARNING

  • Observe the safety precautions.
  • Never close the windows carelessly or in an uncontrolled manner, because this increases the risk of injury.

Tips

  • You can still open and close the windows for several minutes after turning the ignition off. The power window switch is not disabled until the driver's door or front passenger's door is opened.
  • The power windows are equipped with pinch protection. The automatic window may stop closing and will open all the way again even if no obstacle is detected. Pull the power window switch up until the window is completely raised.

Convenience opening and closing

Applies to: vehicles with convenience key

Convenience opening and closing the windows and roof*

You can set in the MMI if all windows or the roof* should open or close all at once, Setting the central locking system.

  • Press and hold the or button on the vehicle key until all windows and the roof* have reached the desired position. Or:
  • Touch the sensor* on the door handle, fig. 27 until all of the windows and the roof* are closed. Do not place your hand in the door handle when doing this.

When all of the windows and the roof* are closed, the turn signals will flash once.

WARNING

  • Observe the safety precautions.
  • Never close the windows or the roof* carelessly or in an uncontrolled manner, because this increases the risk of injury.
  • For security reasons, the windows and the roof* can only be opened and closed with the vehicle key at a maximum distance of approximately 6.5 feet (2 m) away from the vehicle. Always pay attention when using the button to close the windows and the roof* so that no one is pinched. The closing process will stop immediately when the button is released.

Tips

Applies to: vehicles with panoramic glass roof: If the sunshade is closed, it will automatically open partially or halfway when the roof is tilted or opened.
