Audi A4: Special Tools

Audi A4 (B9) 2016-2024 Service Manual / Transmission / 7-Speed Dual Clutch Transmission 0CJ, 0CK, 0CL / Rear Final Drive, Differential / Special Tools

Special tools and workshop equipment required

  • Seal Installer - Final Drive/Gearbox -T10337-

W00-1310

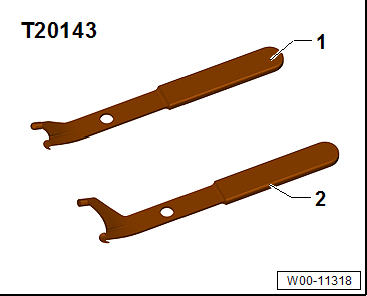

  • Puller - Crankshaft/Power Steering Seal -T20143/1-

W00-11318

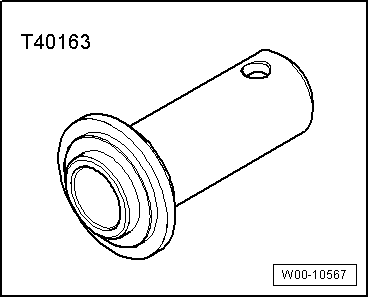

  • Seal Installer - Flange Shaft -T40163-

W00-10567

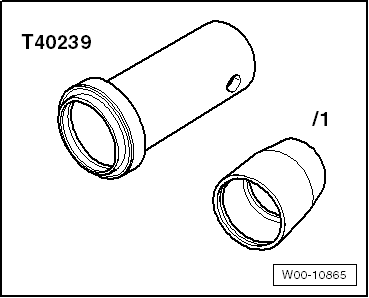

  • Seal Installer - Output Shaft -T40239-

W00-10865

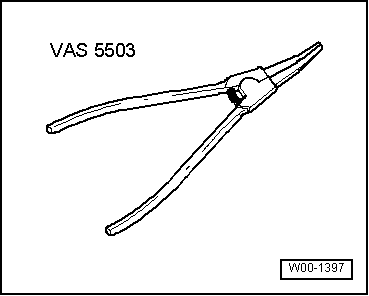

  • Circlip Pliers -VAS5503A-

W00-1397

  • Used Oil Collection and Extraction Unit -SMN372500-

W00-11526

  • Press Plate -VW401-

W00-11356

  • Press Plate -VW402-

W00-11418

  • Press Piece - Rod -VW409-

W00-11419

  • Press Piece - Multiple Use -VW412-

W00-11421

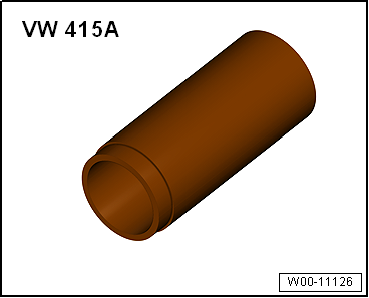

  • Press Piece - 60mm -VW415A-

W00-11126

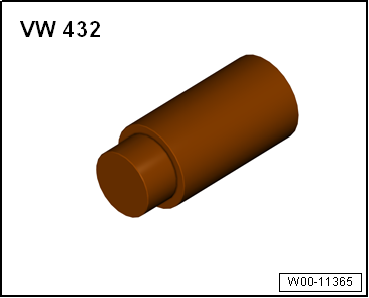

  • Press Piece - Bushing - 50mm Diameter -VW432-

W00-11365

  • Slide Hammer Set -VW771- with Slide Hammer Set - Bolt -VW771/43-

W00-11119

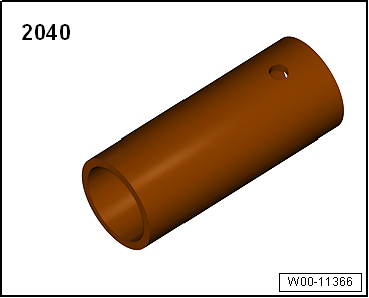

  • Press Piece - Front Control Arm -2040-

W00-11366

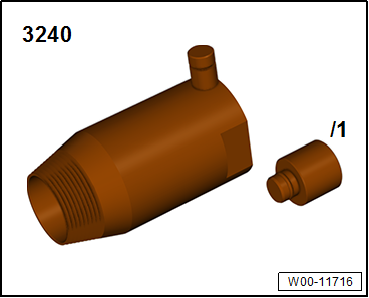

  • Puller - Camshaft Seal -3240-

W00-11716

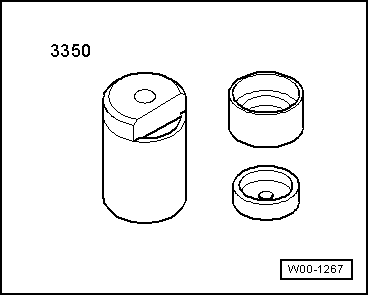

  • Bearing Installer - Carrier Bearing -3350-
  • Not illustrated:
  • Splitter VAS251411 -VAS251411-

W00-1267

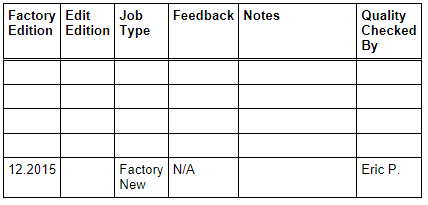

Revision History

DRUCK NUMBER: A005A014521

Revision History
