Audi A4: Commercially Available Tools and Materials

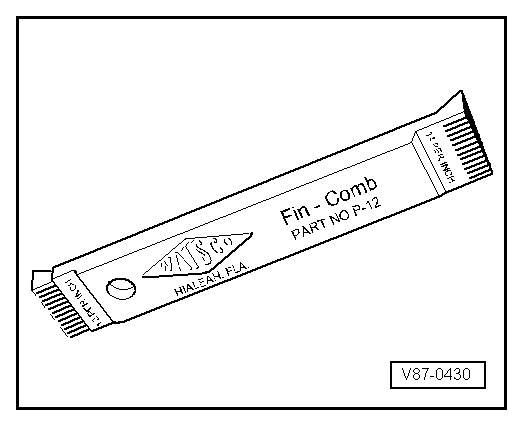

Fin comb

V87-0430

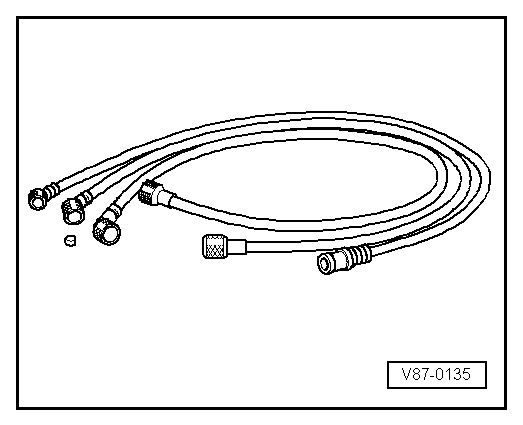

Fill hoses

5/8"-18 UNF thread

  Note

  • Use differently colored charging hoses (1800 mm long).
  • Have valve opener and spare seals to hand.
  • A charging hose in short version is also included in Refrigerant Circuits Adapter Set 1 -VAS6338/1-.

V87-0135

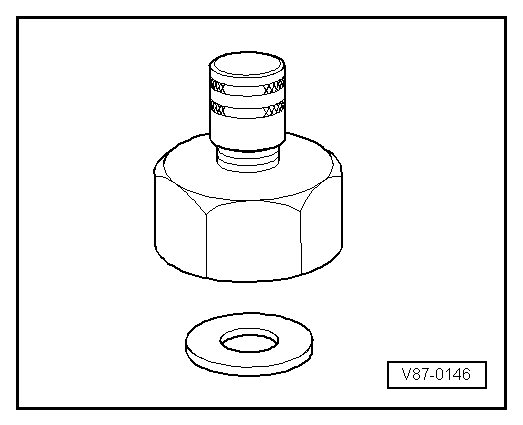

Connection piece for refrigerant cylinder with seal, quick-release coupling connection or threaded connection 5/8" - 18 UNF

V87-0146

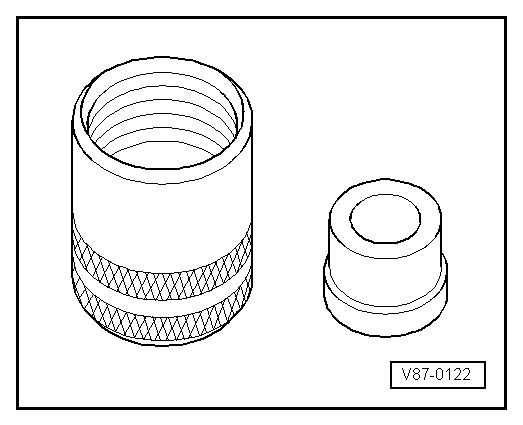

Valve caps with spare seals (for 5/8"-18 UNF thread)

Seals can also be used for charging hoses.

  Note

Valve caps with spare seals are also included in Refrigerant Circuits Adapter Set 1 -VAS6338/1-.

V87-0122

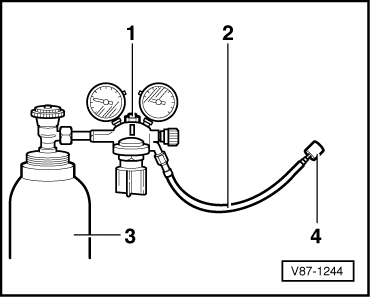

Pressure gauge set with pressure reducer for nitrogen (max. reducing pressure: 15 bar (218 psi) )

V87-1244

1 - Pressure gauge set

2 - Pressure hose (inner diameter 5 mm, length 2 m)

3 - Nitrogen

4 - Hose fitting

  Note

For connection to A/C Adapter Set -VAG1785- with 5/8"-18 UNF thread

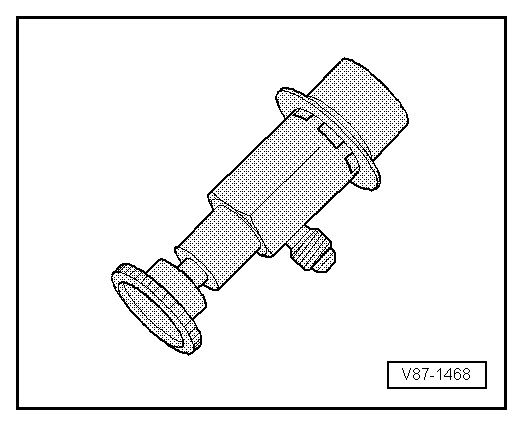

Quick-release coupling adapter for service connections

V87-1468

  • High-pressure side, nominal size 16 mm
  • Low-pressure side, nominal size 13 mm
  • 2x release tool (Sharan)

  Note

This quick-release coupling is delivered with the service station.

Improvised Tools

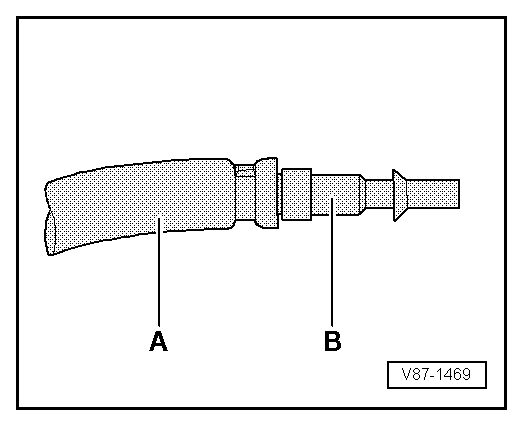

Charging hose with connection for workshop compressed-air system

V87-1469

A - Charging hose 5/8" - 18 UNF** (version with large inner diameter)

B - Connection for workshop compressed-air system ** (always use filter)

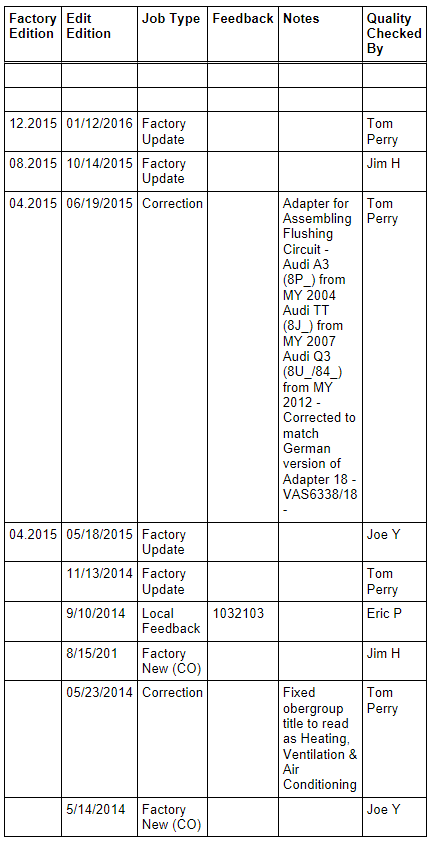

Revision History

DRUCK NUMBER: A0053300221

Revision History
