Audi A4: Input Shaft Double Shaft Seal, Replacing

Special tools and workshop equipment required

  • Puller - Crankshaft/Power Steering Seal -T20143-
  • Thrust Piece -T40300-
  • Clutch, engaging bearing and slave cylinder removed. Refer to → Chapter "Dual Clutch, Removing and Installing".

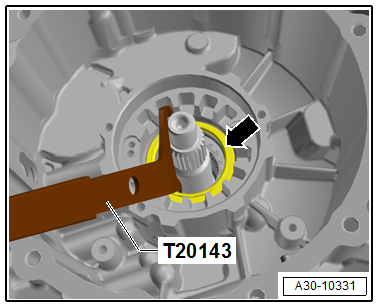

- With the Puller - Crankshaft/Power Steering Seal -T20143- carefully remove the seal -arrow- from the housing.

A30-10331

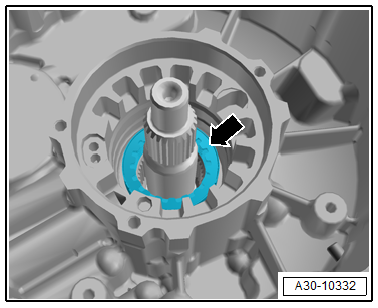

- A waved washer -arrow- is located behind the seal, it does not need to be replaced.

  Note

Pay attention to the installed position.

A30-10332

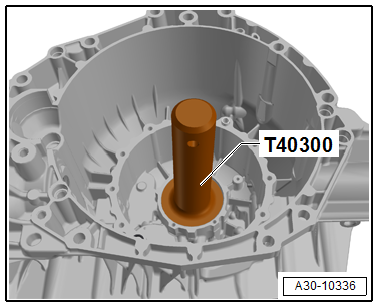

- Drive in the new seal to the stop using the Thrust Piece -T40300-.

- Install the clutch. Refer to → Chapter "Dual Clutch, Removing and Installing".

A30-10336

Input Shaft Seal, Replacing

Special tools and workshop equipment required

  • Puller - Crankshaft/Power Steering Seal -T20143-
  • Assembly Sleeve -T40308-
  • Thrust Piece -T50038-

Removing

  • The clutch is installed.

  Caution

There is a risk of damaging the clutch from mishandling.

The shaft seal can only be replaced when the clutch is installed. Refer to → Anchor

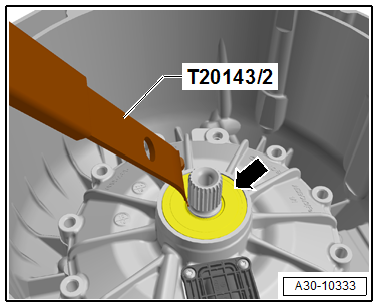

- Pry out the shaft seal -arrow- carefully with the Puller - Crankshaft/Power Steering Seal -T20143-.

  Note

Do not damage the contact surface on the shaft.

A30-10333

Installing

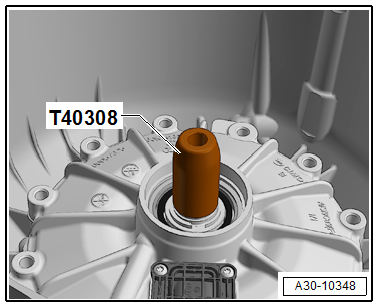

- Place the Assembly Sleeve -T40308- on the drive axle.

A30-10348

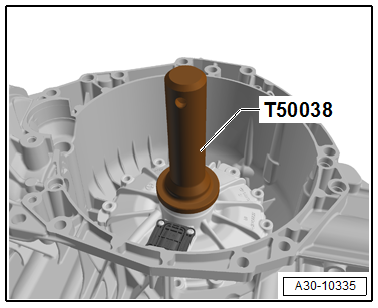

- Drive in the new seal with the Thrust Piece -T50038- in the clutch housing until it stops.

- Remove the Assembly Sleeve -T40308-.

A30-10335

Special Tools

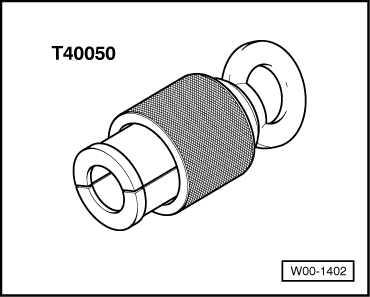

Puller - Input Shaft -T40050-

W00-1402

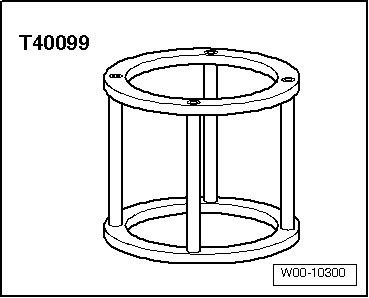

Pressure Stand -T40099-

W00-10300

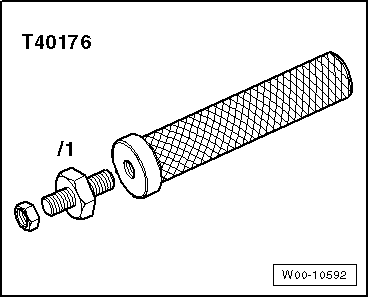

Puller - Clutch Module -T40176-

W00-10592

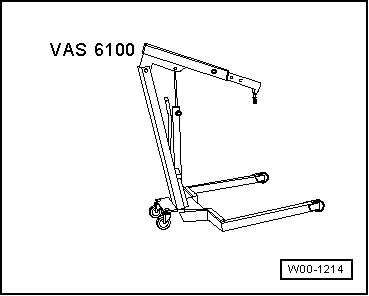

Shop Crane -VAS6100-

W00-1214

Puller - Crankshaft/Power Steering Seal -T20143-

W00-11318

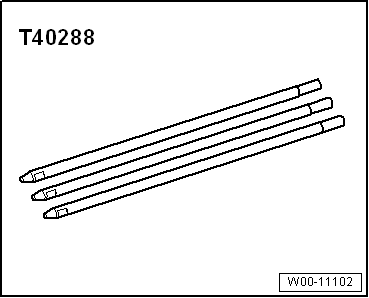

Guide Pins - Gearbox -T40288-

W00-11102

Thrust Piece -T40300-

W00-11654

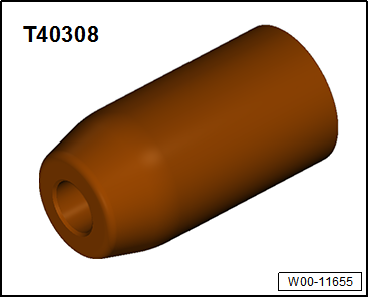

Assembly Sleeve -T40308-

W00-11655

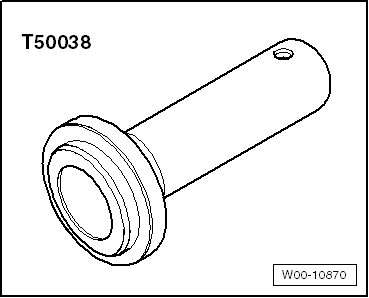

Thrust Piece -T50038-

W00-10870

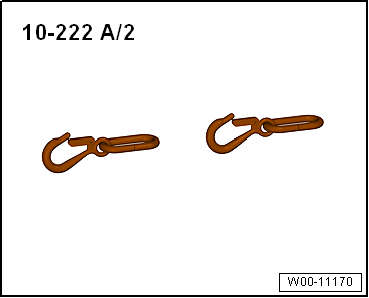

Engine Support Bridge - Additional Hooks (2 pc.) -10-222A/2-

W00-11170
