Audi A4: Overview - Transmission

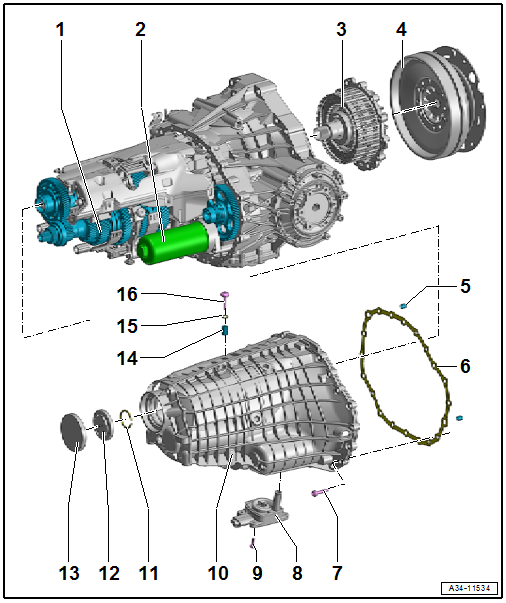

Overview - Transmission, FWD Vehicles

Overview - Transmission, FWD Vehicles

1 - Gear Set

  • Removing and installing. Refer to → Chapter "Overview - Gear Set, FWD Vehicles".

2 - Hydraulic Pressure Reservoir

  • Observe the safety notes. Refer to → Chapter "ATF Pump, Deactivating and Draining the Hydraulic Pump Reservoir".
  • Removing and installing. Refer to → Chapter "Transmission, Disassembling and Assembling".
  • Disposal. Refer to → Chapter "Hydraulic Pressure Reservoir, Disposing".

3 - Dual Clutch

  • Removing and installing. Refer to → Chapter "Dual Clutch, Removing and Installing".

4 - Flywheel

  • Removing and installing. Refer to → Chapter "Flywheel, Removing and Installing".

5 - Alignment Sleeve

6 - Seal

  • Replacing

7 - Transmission Housing Bolt

  • Replacing

8 - Transmission Fluid Pump

  • Removing and installing. Refer to → 7-Speed Dual Clutch Transmission 0CK; Rep. Gr.34; Transmission Fluid Circuit; Transmission Fluid Pump, Removing and Installing.

9 - Bolt

  • Removing and installing. Refer to → 7-Speed Dual Clutch Transmission 0CK; Rep. Gr.34; Transmission Fluid Circuit; Transmission Fluid Pump, Removing and Installing.

10 - Transmission Housing

  • Removing an installing. Refer to → Chapter "Transmission, Disassembling and Assembling".

11 - Circlip

  • Replacing

12 - Oil Guide Piece Drive Axle

13 - Cap

  • Replacing

14 - Alignment Sleeve

15 - Seal

  • Replacing

16 - Bolt

  • 15 Nm + 90º
  • Replacing
  • With seal

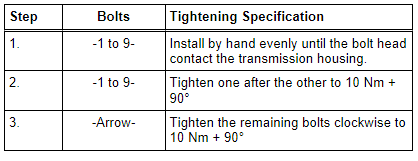

Transmission Housing Tightening Specification and Sequence.

- Tighten the bolts in three steps in the sequence shown:

A34-11537

Transmission Housing Tightening Specification and Sequence.

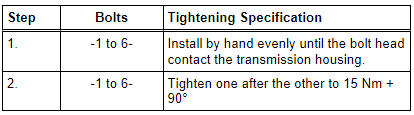

Wheel Set Tightening Specification and Sequence.

- Push the centering bracket -A- all the way in.

  Note

Bolt -6- without centering bracket.

- Tighten the bolts in two steps in the sequence shown:

A34-11547

Wheel Set Tightening Specification and Sequence.

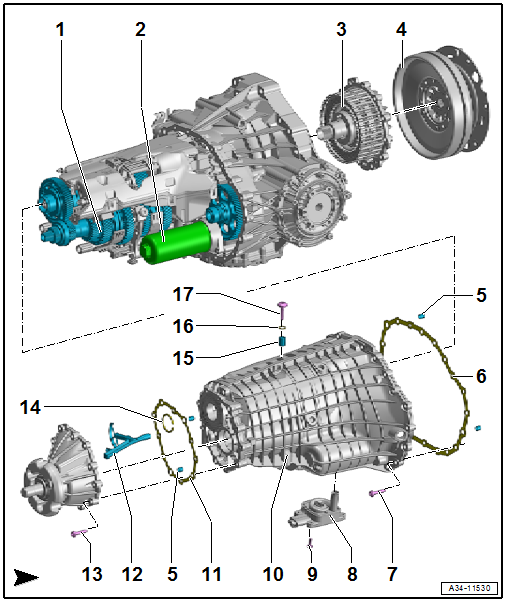

Overview - Transmission, AWD Vehicles

Overview - Transmission, AWD Vehicles

1 - Gear Set

  • Removing and installing. Refer to → Chapter "Overview - Gear Set, AWD Vehicles".

2 - Hydraulic Pressure Reservoir

  • Observe the safety notes. Refer to → Chapter "ATF Pump, Deactivating and Draining the Hydraulic Pump Reservoir".
  • Removing an installing. Refer to → Chapter "Transmission, Disassembling and Assembling".
  • Disposal. Refer to → Chapter "Hydraulic Pressure Reservoir, Disposing".

3 - Dual Clutch

  • Removing and installing. Refer to → Chapter "Dual Clutch, Removing and Installing".

4 - Flywheel

  • Removing and installing. Refer to → Chapter "Flywheel, Removing and Installing".

5 - Alignment Sleeve

6 - Seal

  • Replacing

7 - Transmission Housing Bolt

  • Replacing

8 - Transmission Fluid Pump

  • Removing and installing. Refer to → 7-Speed Dual Clutch Transmission 0CK; Rep. Gr.34; Transmission Fluid Circuit; Transmission Fluid Pump, Removing and Installing.

9 - Bolt

  • Removing and installing. Refer to → 7-Speed Dual Clutch Transmission 0CK; Rep. Gr.34; Transmission Fluid Circuit; Transmission Fluid Pump, Removing and Installing.

10 - Transmission Housing

  • Removing an installing. Refer to → Chapter "Transmission, Disassembling and Assembling".

11 - Seal

  • Replacing

12 - Oil Guide Piece Drive Axle

13 - Differential Housing Bolt

14 - Circlip

  • Replacing

15 - Alignment Sleeve

16 - Seal

  • Replacing

17 - Bolt

  • 15 Nm + 90º
  • Replacing

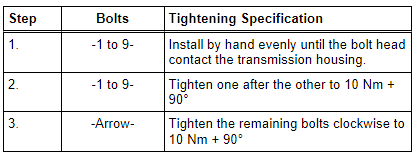

Transmission Housing Tightening Specification and Sequence.

- Tighten the bolts in three steps in the sequence shown:

A34-11537

Transmission Housing Tightening Specification and Sequence.

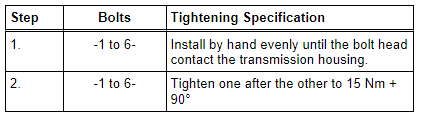

Wheel Set Tightening Specification and Sequence.

- Push the centering bracket -A- all the way in.

  Note

Bolt -6- without centering bracket.

- Tighten the bolts in two steps in the sequence shown:

A34-11547

Wheel Set Tightening Specification and Sequence.
