Audi A4: Oil Gauge Tester T40178 Service Values

Audi A4 (B9) 2016-2025 Service Manual / Engine / Oil Gauge Tester T40178 Service Values

Engine Overview with Adjustment Values, Gauge - Oil Gauge Tester (T40178)

Audi A4 - Model Code 8W → Chapter "Audi A4 - Model Code 8W"

1)  Not available at the time of document release.

Audi A4 - Model Code 8W

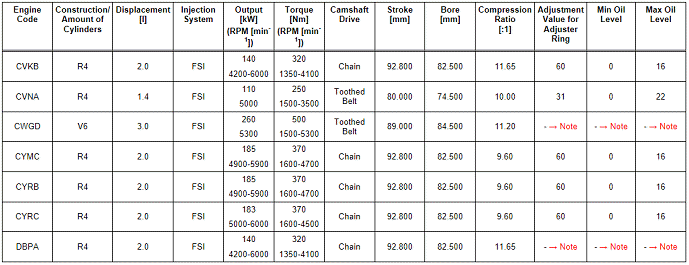

Gasoline Engines

Audi A4 - Model Code 8W

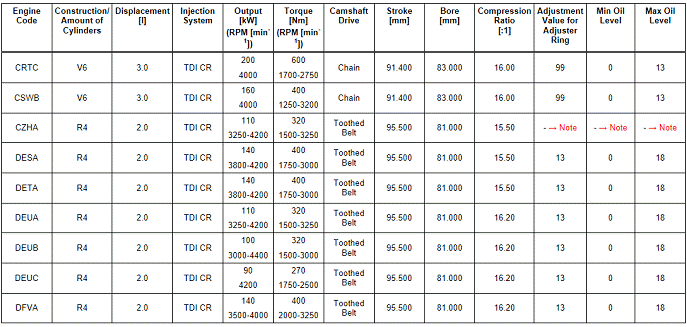

Diesel Engines

Audi A4 - Model Code 8W
