Audi A4: Special Tools

Special tools and workshop equipment required

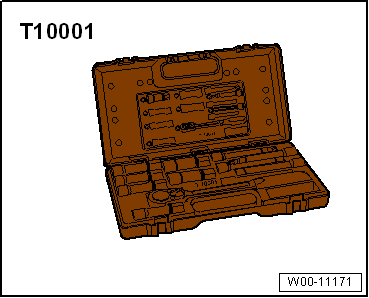

  • Shock Absorber Set -T10001-

W00-11171

  • Tensioning Strap -T10038-

W00-11193

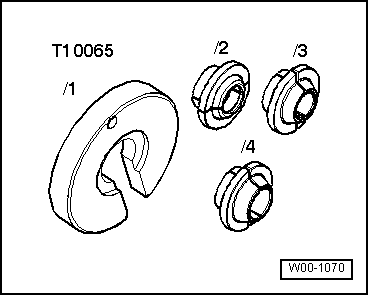

  • Tripod Joint Tool -T10065-

W00-1070

  • Engine/Gearbox Jack Adapter - Wheel Hub Support -T10149-

W00-11475

  • Hydraulic Press - Bushing Assembly Tool Kit -T10230-

W00-11692

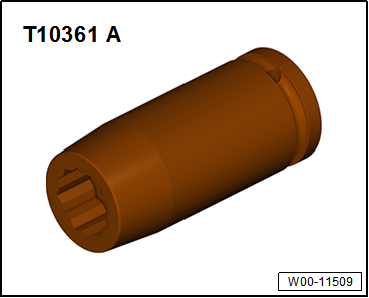

  • Socket AF 24 mm -T10361A-

W00-11509

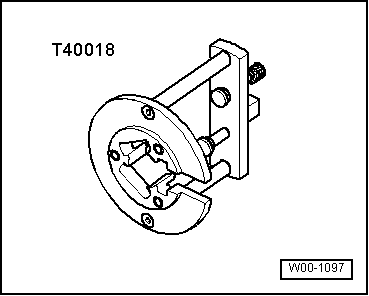

  • Triple Roller Assembly Tool -T40018- for drive axles with triple roller joint AAR 3300 i

W00-1097

  • Puller - Differential Bearing -T40032-

W00-1180

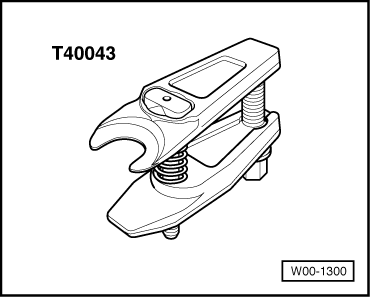

  • Puller - Ball Joint -T40043-

W00-1300

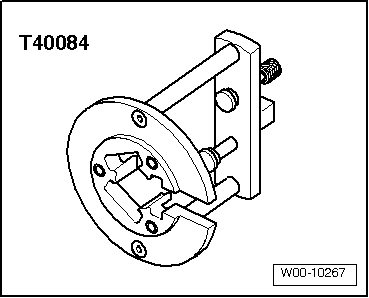

  • Triple Roller Assembly Tool -T40084- for driveshafts with triple roller joint AAR 2600 i

W00-10267

  • Gearbox Support -T40173-

W00-10596

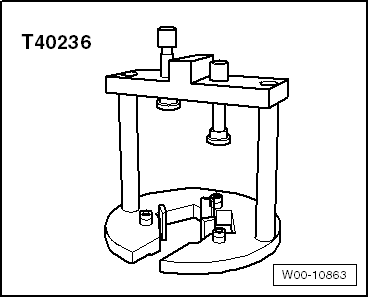

  • Vibration Damper Assembly Tool -T40236-

W00-10863

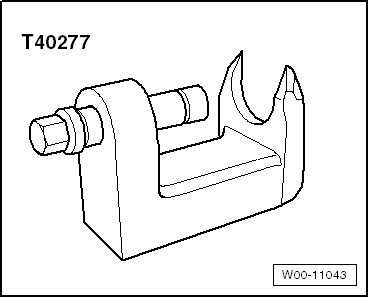

  • Ball Joint Splitter -T40277-

W00-11043

  • Torque Wrench 1331 5-50Nm -VAG1331-

W00-11166

  • Torque Wrench 1332 40-200Nm -VAG1332-

W00-11165

  • Torque Wrench 1332 Insert - Ring Wrench - 21mm -VAG1332/7-

W00-11476

  • Torque Wrench 80-400Nm -VAG1576-

W00-0506

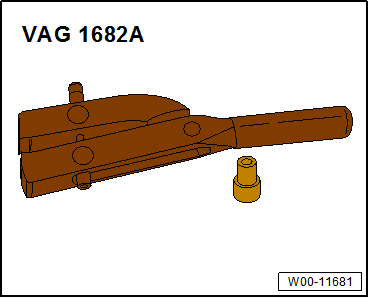

  • Clamping Pliers -VAG1682A- with Clamping Pliers - Jaws -VAG1682A/1-

W00-11681

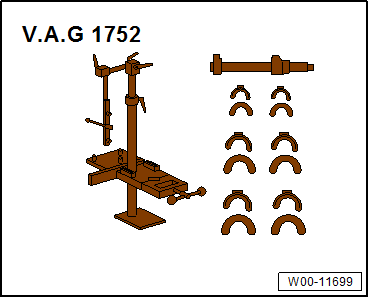

  • Spring Compressor Kit -VAG1752-

W00-11699

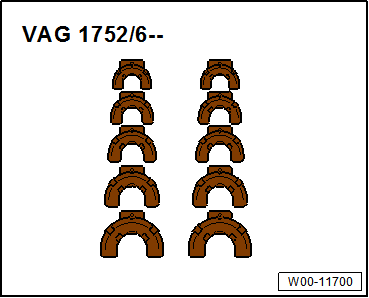

  • Spring Compressor Kit - Spring Retainer w/Inserts -VAG1752/6-

W00-11700

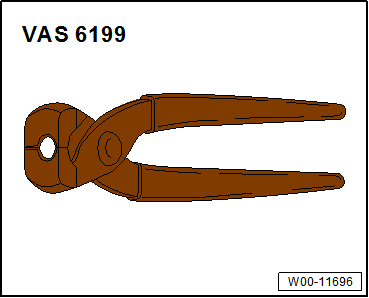

  • Locking Pliers -VAS6199-

W00-11696

  • Engine and Gearbox Jack -VAS6931-

W00-11607

  • Press Plate -VW401-

W00-11356

  • Press Plate -VW402-

W00-11418

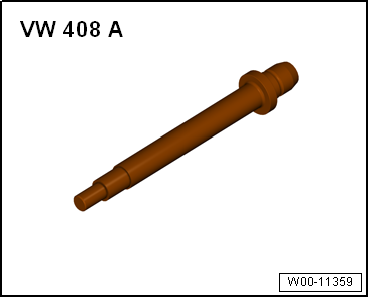

  • Press Piece - Rod -VW408A-

W00-11359

  • Press Piece - Rod -VW409-

W00-11419

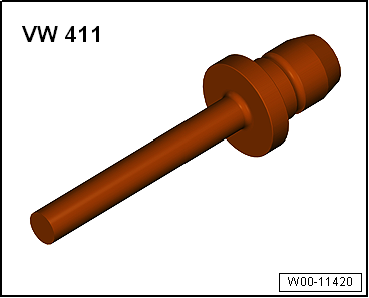

  • Press Piece - Rod -VW411-

W00-11420

  • Press Piece - Multiple Use -VW412-

W00-11421

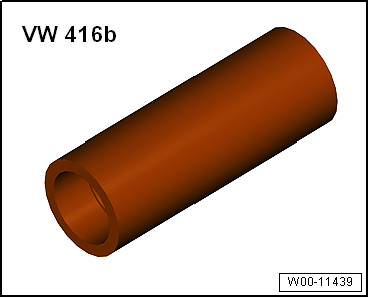

  • Press Piece - 31.5mm -VW416B-

W00-11439

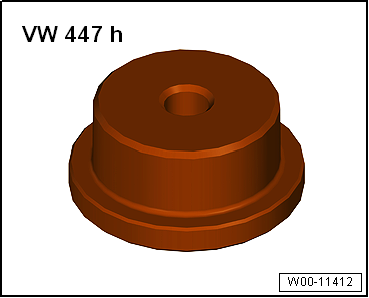

  • Press Piece - Multiple Use -VW447H-

W00-11412

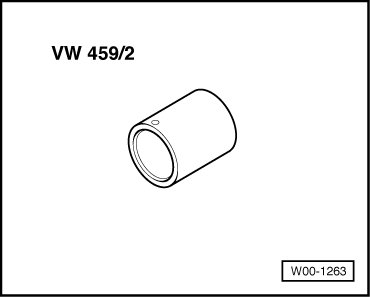

  • Bearing Installer - Ball Joint/Bushing/Bearing 2 -VW459/2-

W00-1263

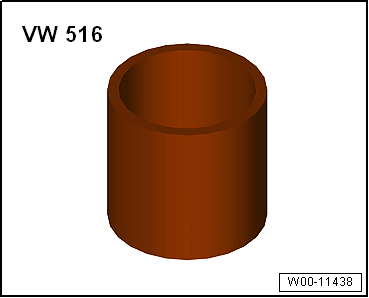

  • Press Piece - 42mm -VW516-

W00-11438

  • CV Joint Press Sleeve -VW522-

W00-0152

  • Slide Hammer Set -VW771-

W00-11119

  • Press Block -40-204A-

W00-0115

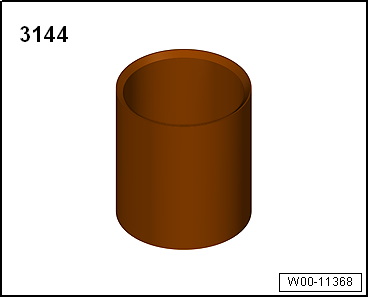

  • Bearing Installer - Wheel Bearing -3144-

W00-11368

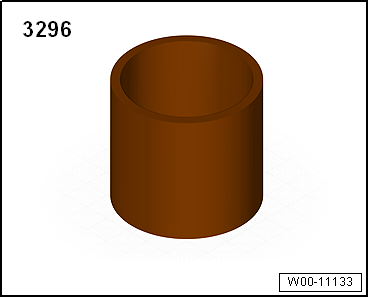

  • Press Piece - Reverse Gear Syncro -3296-

W00-11133

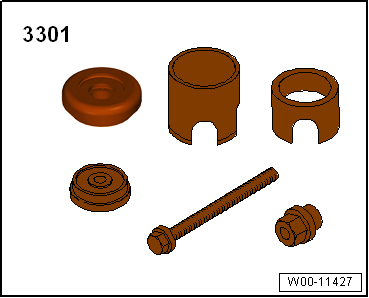

  • Subframe Bushing Tool Kit -3301-

W00-11427

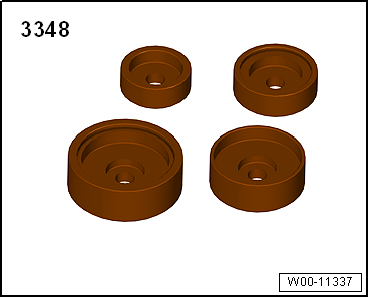

  • Bearing Installer - Multiple Use -3348-

W00-11337

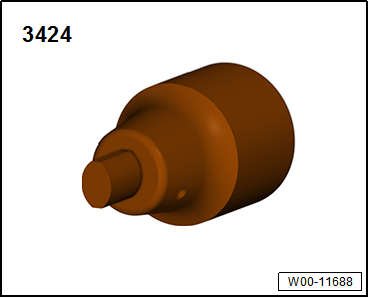

  • Spreader Tool -3424-
  • Not illustrated:
  • Locating Pins -T40327-
  • Locating Pin -T40334-
  • Torque Wrench 1331 Insert - Ring Wrench - 16mm -VAG1331/12-
  • Ball Joint Splitter -VAS251805-
  • Pneumatic Hydraulic Press -VAS6654-

W00-11688
