Audi A4: Door Components

Overview - Window Regulator

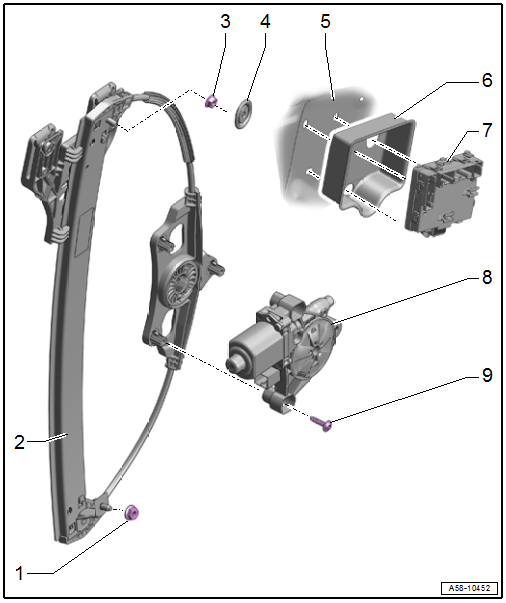

Overview - Window Regulator

1 -  Nut

  • 7.5 Nm

2 -  Window Regulator

  • Removing and installing. Refer to → Chapter "Window Regulator, Removing and Installing".

3 -  Nut

  • 7.5 Nm

4 -  Cap

5 -  Door

6 -  Rubber Boot

  • For the door control module

7 -  Rear Door Control Module

  • Component location overview. Refer to → Chapter "Component Location Overview - Central Locking".

8 -  Rear Power Window Motor

  • Driver Side Rear Window Regulator Motor -V471-
  • Passenger Side Rear Window Regulator Motor -V472-
  • Removing and installing. Refer to → Chapter "Window Regulator Motor, Removing and Installing".

9 -  Bolt

  • 3.5 Nm
  • Quantity: 3
  • Thread cutting
  • Position and install by hand

Overview - Door Handle and Door Lock

Door Handle and Mounting Bracket

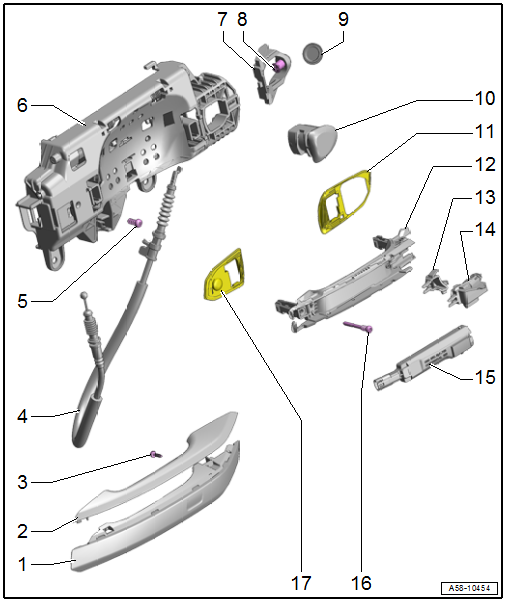

Door Handle and Mounting Bracket

1 -  Door Handle Trim

  • There are different versions. Refer to the Parts Catalog.
  • Removing and installing. Refer to → Chapter "Door Handle Trim, Removing and Installing".

2 -  Trim Molding

  • Trim for the door handle
  • Equipped on some models
  • Removing and installing. Refer to → Chapter "Door Handle Trim Molding, Removing and Installing".

3 -  Bolt

  • 1 Nm
  • For versions with trim molding

4 -  Door Lock Cable

  • Removing and installing. Refer to → Chapter "Door Lock Cable, Removing and Installing".

5 -  Bolt

  • 2.5 Nm

6 -  Mounting Bracket

  • Removing and installing. Refer to → Chapter "Mounting Bracket, Removing and Installing".

7 -  Retaining Bracket

8 -  Clamping Screw

  • 2.5 Nm
  • For the housing

9 -  Plugs

10 -  Housing

  • Removing and installing. Refer to → Chapter "Housing, Removing and Installing".

11 -  Rear Backing Plate

  • Removing and installing. Refer to → Chapter "Door Handle, Removing and Installing".

12 -  Door Handle

  • Removing and installing. Refer to → Chapter "Door Handle, Removing and Installing".

13 -  Housing

  • For vehicles without an exterior door handle illumination bulb

14 -  Exterior Door Handle Illumination Bulb

  • Left Front Exterior Door Handle Illumination Bulb -L162-
  • Right Front Exterior Door Handle Illumination Bulb -L163-
  • Equipped on some models
  • Overview. Refer to → Electrical Equipment; Rep. Gr.94; Exterior Door Handle Lamps; Overview - Exterior Door Handle Lamps.

15 -  Exterior Door Handle Touch Sensor

  • Driver Exterior Door Handle Touch Sensor -G415-
  • Front Passenger Exterior Door Handle Touch Sensor -G416-
  • Equipped on some models
  • Overview. Refer to → Electrical Equipment; Rep. Gr.94; Access/Start Authorization; Component Location Overview - Keyless Access Authorization System.

16 -  Bolt

  • 2.5 Nm
  • Quantity: 2

17 -  Front Backing Plate

  • Removing and installing. Refer to → Chapter "Door Handle, Removing and Installing".

Door Lock and Striker

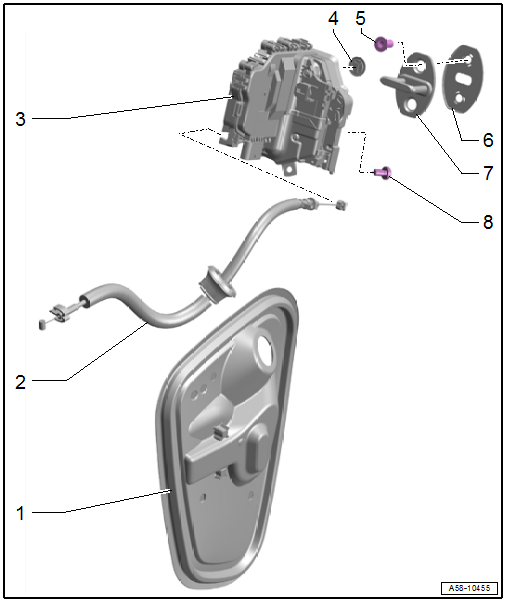

Door Lock and Striker

1 -  Door Inner Cover

  • Removing and installing. Refer to → Chapter "Door Inner Cover, Removing and Installing".

2 -  Door Opener Operating Cable

  • With grommet
  • Removing and installing. Refer to → Chapter "Door Opener Operating Cable, Removing and Installing".

3 -  Door Lock

  • Removing and installing. Refer to → Chapter "Door Lock, Removing and Installing".

4 -  Plugs

5 -  Bolt

  • 25 Nm
  • Quantity: 2

6 -  Backing Plate

  • Shared component with -7-

7 -  Striker

  • Removing and installing. Refer to → Chapter "Striker, Removing and Installing".
  • Adjusting. Refer to → Chapter "Striker, Adjusting".

8 -  Bolt

  • 19 Nm
  • Quantity: 2

Overview - Window Guides and Window Shaft Strips

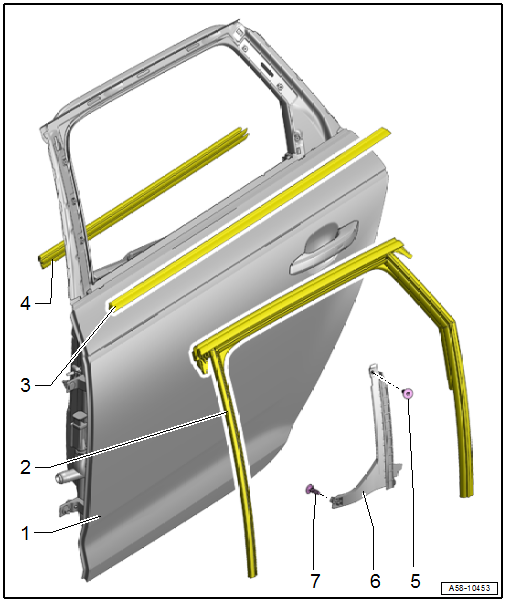

Overview - Window Guides and Window Shaft Strips

1 -  Door

2 -  Window Guide

  • Removing and installing. Refer to → Chapter "Window Guide, Removing and Installing".

3 -  Outer Window Shaft Strip

  • Removing and installing. Refer to → Chapter "Outer Window Shaft Strip, Removing and Installing".

4 -  Inner Window Shaft Strip

  • Removing and installing. Refer to → Chapter "Inner Window Shaft Strip, Removing and Installing".

5 -  Bolt

  • 2.5 Nm

6 -  Guide Rail

  • For the door window
  • Removing and installing. Refer to → Chapter "Door Window Guide Rail, Removing and Installing".

7 -  Bolt

  • 2.5 Nm
