Audi A4: Special Tools

Audi A4 (B9) 2016-2026 Service Manual / Transmission / Servicing - 7-Speed Dual Clutch Transmission 0CJ, 0CL, 0CK / Controls, Housing / Special Tools

Special tools and workshop equipment required

  • Used Oil Collection and Extraction Unit -SMN372500-

W00-11526

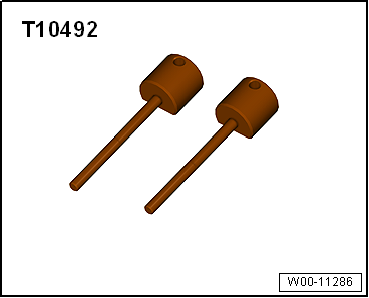

  • Locking Pin -T10492-

W00-11286

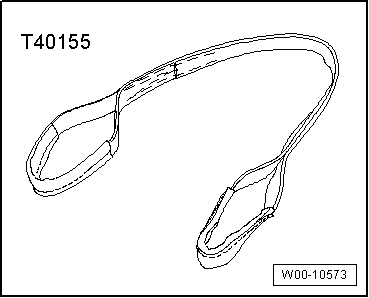

  • Retaining Strap -T40155-

W00-10573

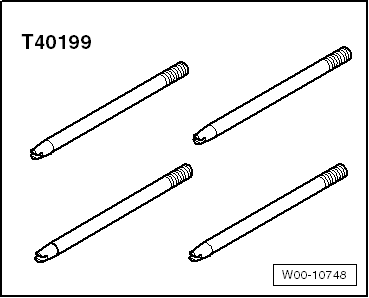

  • Oil Sump Assembly Pin -T40199-

W00-10748

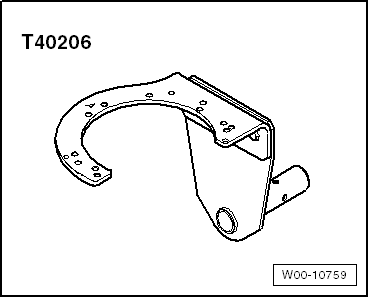

  • Gearbox Support -T40206- and Gearbox Support - Drilling Template -T40206/3-

W00-10759

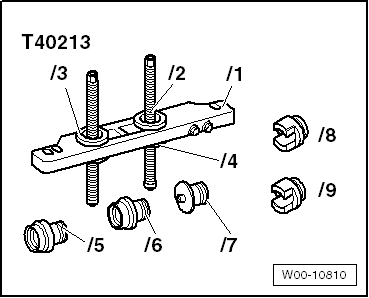

  • Gearbox Assembly Tool -T40213 /1/2/3-

W00-10810

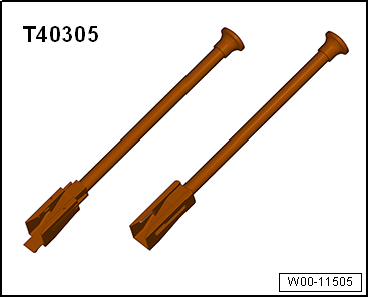

  • Assembly Tool -T40305-

W00-11505

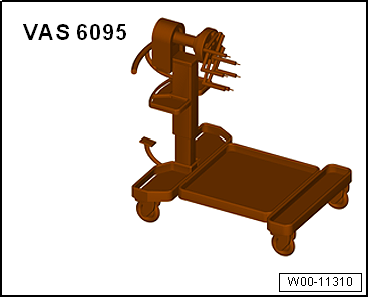

  • Engine and Gearbox Bracket -VAS6095A-

W00-11310

  • Shop Crane -VAS6100-

W00-11307

  • Engine Bung Set -VAS6122-

W00-11228

  • Electronic Torque Wrench 3-60Nm -VAS6583-

W00-11263

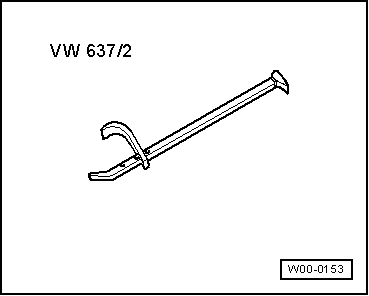

  • Puller - Grease Cap -VW637/2-

W00-0153

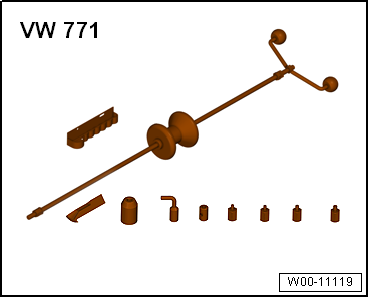

  • Slide Hammer Set -VW771-

W00-11119

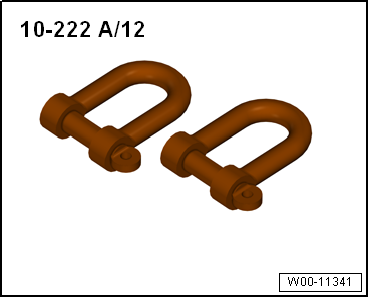

  • Engine/Gearbox Support Shackle (2 pc.) -10-222A/12-

W00-11341

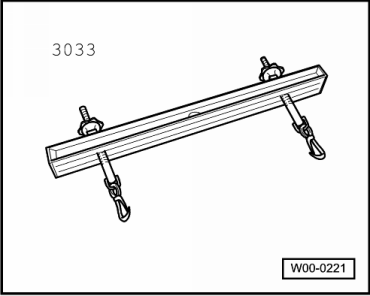

  • Lifting Tackle -3033-

W00-0221

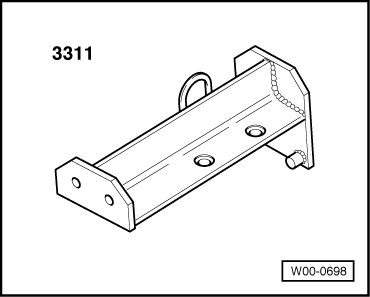

  • Hook And Support Tool -3311- with Hook And Support Tool - Bolt -3311/1-

W00-0698

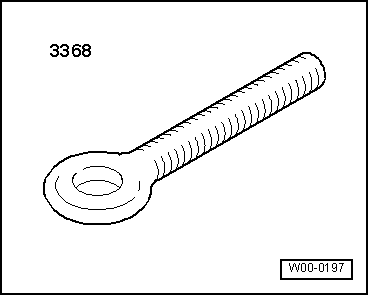

  • Lifting Eyebolt -3368-
  • Not illustrated:
  • Press Tool -T40323-
  • Wiring Harness Repair Set - Hot Air Blower -VAS1978/14A-
  • Cover -T40322-
  • Support -T40321-

W00-0197

Gears, Shafts

Gears and Shafts, Disassembling and Assembling

Gear and Shaft Disassembly and Assembly Is Currently Not Provided.
