Audi A4: Transmission Control

Component Location Overview - Transmission Control

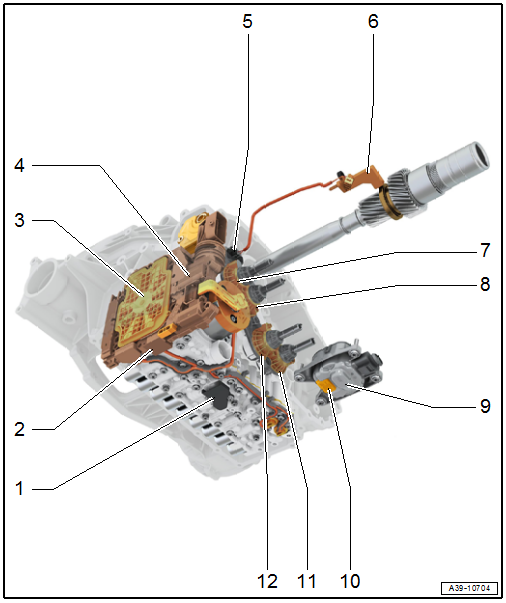

Component Location Overview - Transmission Control

1 - DSG Transmission Mechatronic -J743-

2 - Transmission Fluid Temperature Sensor -G93-

3 - Temperature Sensor In Control Module -G510-

4 - Transmission Control Module -J217-

5 - Transmission Input Speed Sensor 2 -G612-

6 - Transmission Input Speed Sensor 1 -G632-

7 - Gear Position Distance Sensor 4 -G490-

8 - Gear Position Distance Sensor 3 -G489-

9 - Transmission Electric Pump 2 -V553-

10 - Transmission Fluid Temperature Sensor 2 -G754-

11 - Gear Position Distance Sensor 2 -G488-

12 - Gear Position Distance Sensor 1 -G487-

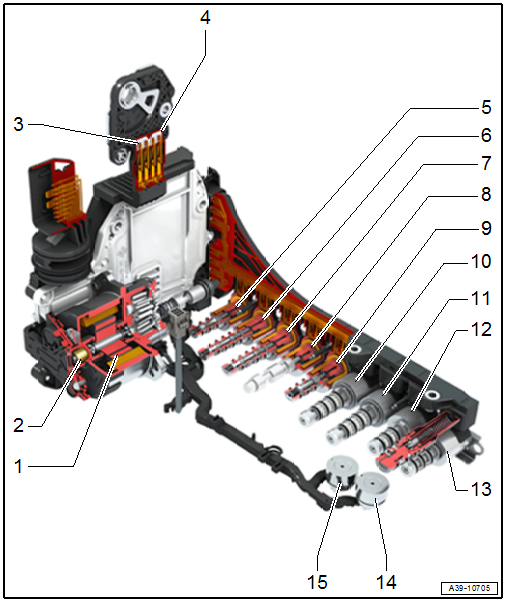

Component Location Overview - Transmission Control

1 - Transmission Fluid Auxiliary Hydraulic Pump -V552-

2 - Transmission Fluid Auxiliary Hydraulic Pump Rotor Position Sensor -G847-

3 - Drive Position Sensor 2 -G869-

4 - Drive Position Sensor -G676-

5 - Automatic Transmission Pressure Regulating Valve 3 -N217-

6 - Solenoid Valve 4 -N91-

7 - Solenoid Valve 3 -N90-

8 - Solenoid Valve 5 -N92-

9 - Solenoid Valve 6 -N93-

10 - Solenoid Valve 1 -N88-

11 - Solenoid Valve 2 -N89-

12 - Automatic Transmission Pressure Regulating Valve 2 -N216-

13 - Automatic Transmission Pressure Regulating Valve 1 -N215-

14 - Hydraulic Pressure Sensor 1 -G545-

15 - Hydraulic Pressure Sensor 2 -G546-
