Audi A4: Special Tools

Special tools and workshop equipment required

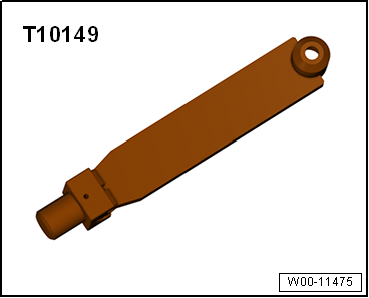

  • Engine/Gearbox Jack Adapter - Wheel Hub Support -T10149-

W00-11475

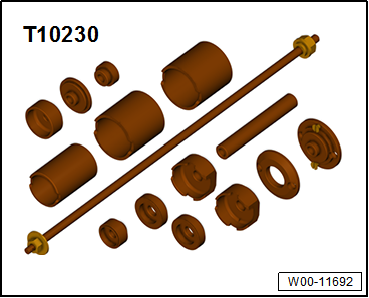

  • Hydraulic Press - Bushing Assembly Tool Kit -T10230-

W00-11692

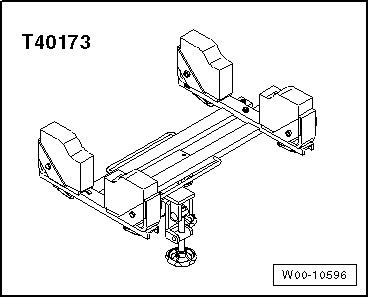

  • Gearbox Support -T40173-

W00-10596

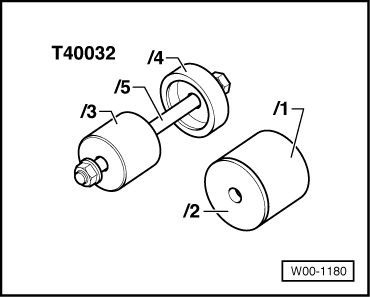

  • Puller - Differential Bearing -T40032-

W00-1180

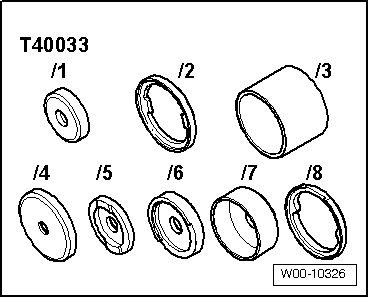

  • Rear Bushing Tool -T40033-

W00-10326

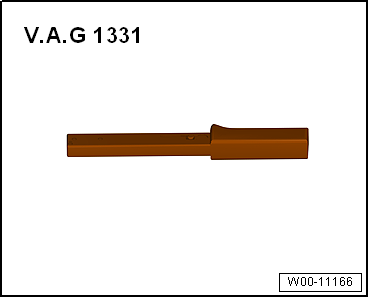

  • Torque Wrench 1331 5-50Nm -VAG1331-

W00-11166

  • Torque Wrench 1332 40-200Nm -VAG1332-

W00-11165

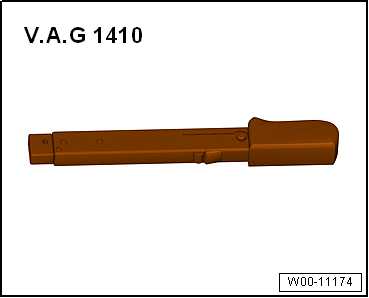

  • Torque Wrench 1410 -VAG1410-

W00-11174

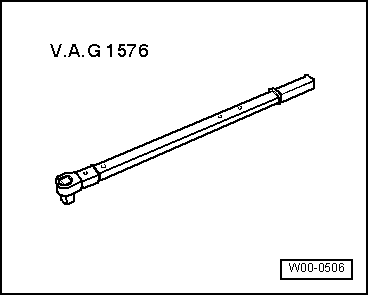

  • Torque Wrench 80-400Nm -VAG1576-

W00-0506

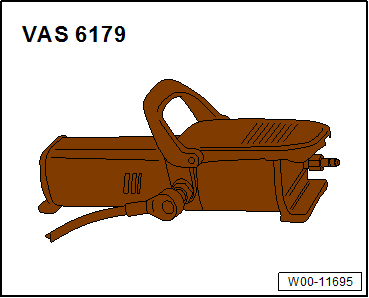

  • Pneumatic/Hydraulic Foot Pump -VAS6179-

W00-11695

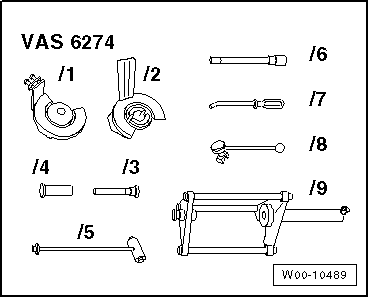

  • Spring Tensioning System -VAS6274-
  • Remove the Spring Tensioning System - T-Bar -VAS6274/5-.

W00-10489

A42-10190

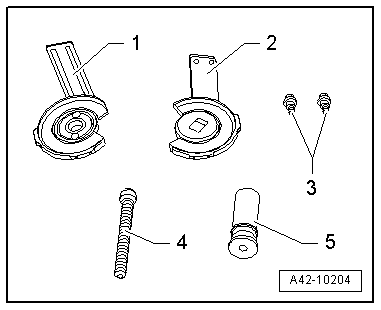

  • 30 mm long centering spring -5- from the Spring Tensioning System - Audi Set -VAS6274/10-

A42-10204

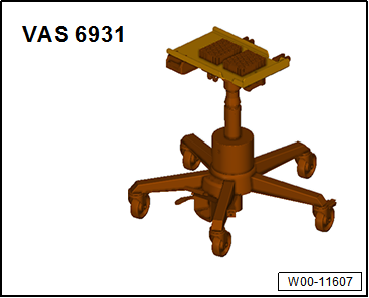

  • Engine and Gearbox Jack -VAS6931-

W00-11607

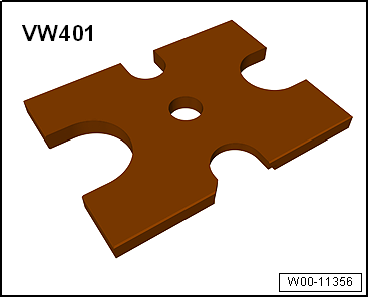

  • Press Plate -VW401-

W00-11356

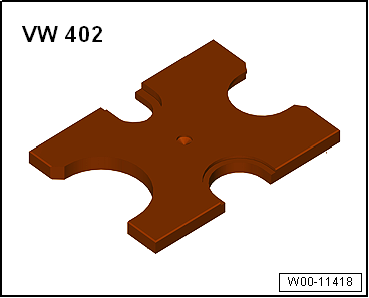

  • Press Plate -VW402-

W00-11418

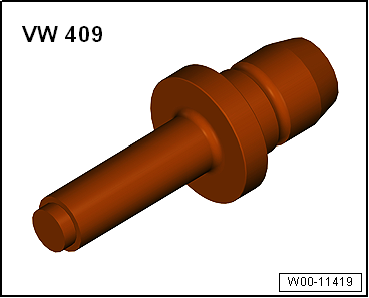

  • Press Piece - Rod -VW409-

W00-11419

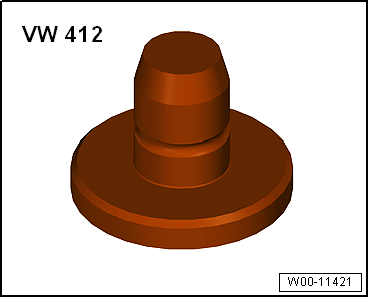

  • Press Piece - Multiple Use -VW412-

W00-11421

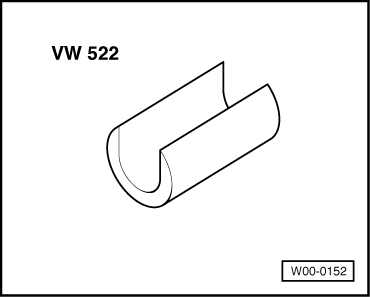

  • CV Joint Press Sleeve -VW522-

W00-0152

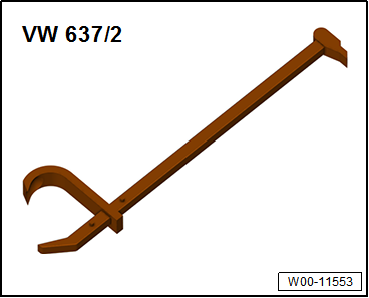

  • Puller - Grease Cap -VW637/2-

W00-11553

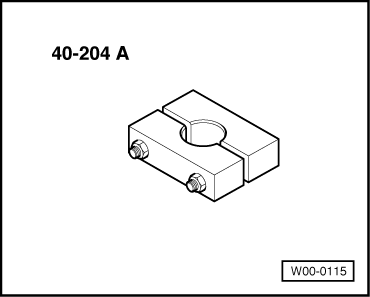

  • Press Block -40-204A-

W00-0115

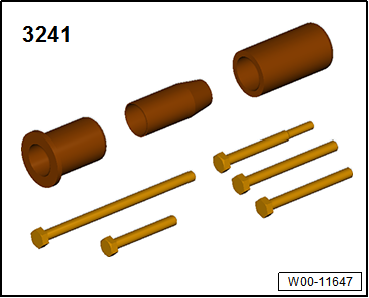

  • Camshaft Installer Kit - Sleeve -3241/4- from the Seal Installer - Camshaft Installer Kit -3241-
  • Not illustrated
  • Locating Pins -T40327-
  • Supplement Set -VAS6274/12-

W00-11647
