Audi A4: Special Tools
Special tools and workshop equipment required

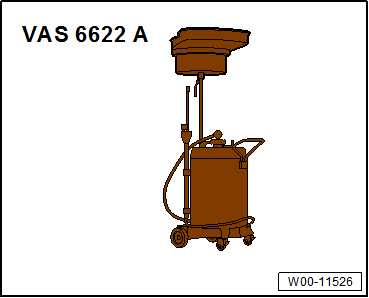

- Used Oil Collection and Extraction Unit -SMN372500-
![W00-11526](images/books/2001/W00-11526.png)
- Tensioning Strap -T10038-
![W00-11193](images/books/2001/W00-11193.png)

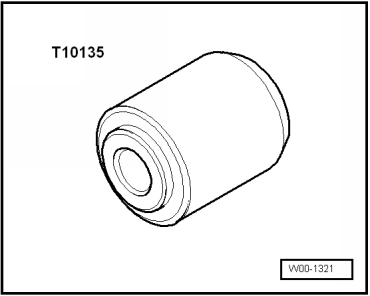

- Seal Installer - Selector Shaft -T10135-
![W00-1321](images/books/2001/W00-1321.png)

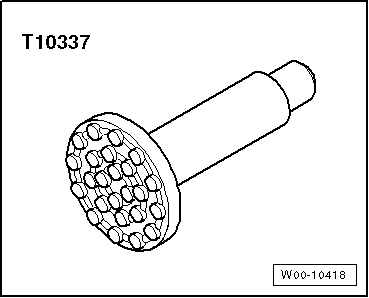

- Engine/Gearbox Jack - Gearbox Support -T10337-
![W00-10418](images/books/2001/W00-10418.png)

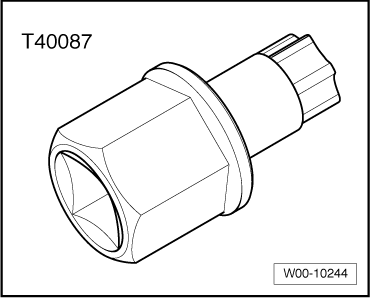

- Torx Socket - T60 -T40087-
![W00-10244](images/books/2001/W00-10244.png)

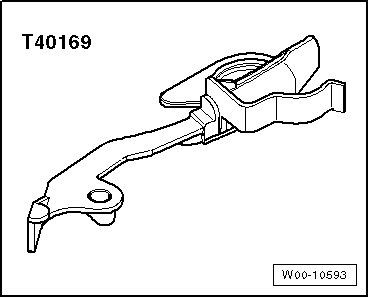

- Clutch Module Assembly Aid -T40169-
![W00-10593](images/books/2001/W00-10593.png)

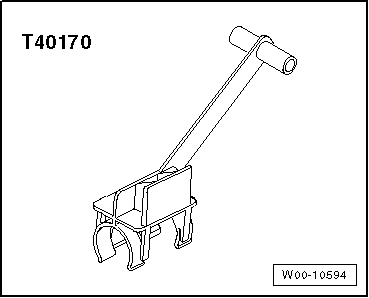

- Clutch Module Transportation Lock -T40170-
![W00-10594](images/books/2001/W00-10594.png)
![W00-10596](images/books/2001/W00-10596.png)
![W00-10993](images/books/2001/W00-10993.png)
![W00-11649](images/books/2001/W00-11649.png)

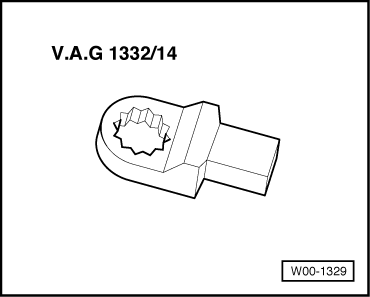

- Torque Wrench 1332 Insert - Ring Wrench - 16mm -VAG1332/14-
![W00-1329](images/books/2001/W00-1329.png)
- Torque Wrench 1410 - VAG1410-
![W00-11174](images/books/2001/W00-11174.png)
- Engine Bung Set -VAS6122-
![W00-11228](images/books/2001/W00-11228.png)

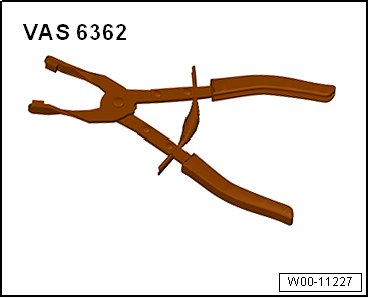

- Hose Clip Pliers -VAS6362-
![W00-11227](images/books/2001/W00-11227.png)

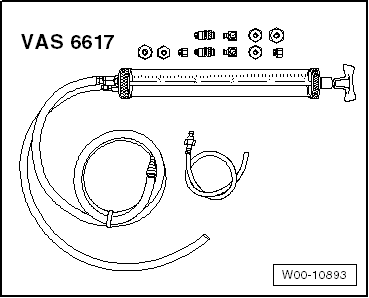

- Pressurized Gearbox Oil Filler Kit -VAS6617-
![W00-10893](images/books/2001/W00-10893.png)
- Engine and Gearbox Jack -VAS6931-
![W00-11607](images/books/2001/W00-11607.png)

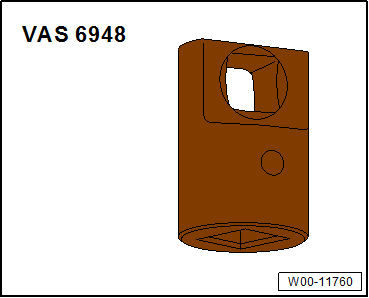

- Torque Wrench Adapter -VAS6948-
![W00-11760](images/books/2001/W00-11760.png)

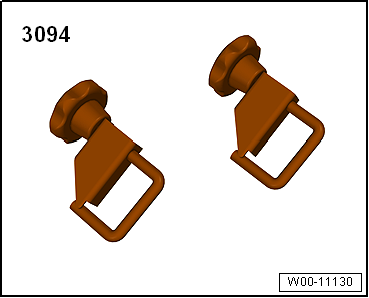

- Hose Clamps - Up To 25 mm -3094-
![W00-11130](images/books/2001/W00-11130.png)
- Trim Removal Wedge -3409-
![W00-11118](images/books/2001/W00-11118.png)
Gears, Shafts
Gears and Shafts, Disassembling and Assembling
Gear and shaft disassembly and assembly is currently not provided.
