Audi A4: Wheel Bearing Housing, Removing and Installing
Special tools and workshop equipment required
- Torque Wrench 1332 40-200Nm -VAG1332-
- Engine and Gearbox Jack -VAS6931-
- Engine/Gearbox Jack Adapter - Wheel Hub Support -T10149-
Caution
This procedure contains mandatory replaceable parts. Refer to component overview and parts catalog prior to starting procedure.
Mandatory Replacement Parts
- Bolt - Wheel Bearing to Wheel Bearing Housing
Removing
FWD
- Disconnect the connector -1- for the rear speed sensor.
Note
Ignore item -2-.
AWD
- Loosen the connection between the drive axle and wheel hub. Refer to → Chapter "Drive Axle Threaded Connection, Loosening and Tightening".
- Disconnect the connector -1- for the rear speed sensor.
Note
Ignore item -2-.
Continuation for All Versions
- Remove the brake shield. Refer to → Brake System; Rep. Gr.46; Rear Brakes; Brake Shield, Removing and Installing.
- Remove the bolt -arrow- and move the bracket -1- to the side together with the wires.
- Turn the wheel hub, until a wheel bolt hole is at the top.
- Install the -T10149- with a wheel bolt -2- on the wheel hub.
Note
Ignore item -1-.
- Slightly lift the wheel bearing housing using the -T10149- with the -VAS6931- this allows the threaded connections to easily separate.
WARNING
Risk of accident!
- Do not lift or lower the vehicle when the -VAS6931- is under the vehicle.
- Do not leave the -VAS6931- under the vehicle any longer than necessary.

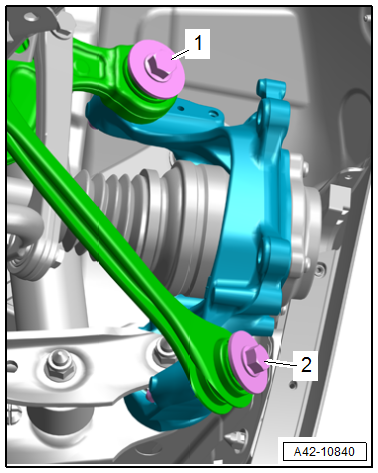

- Remove the bolts -1 and 2-.

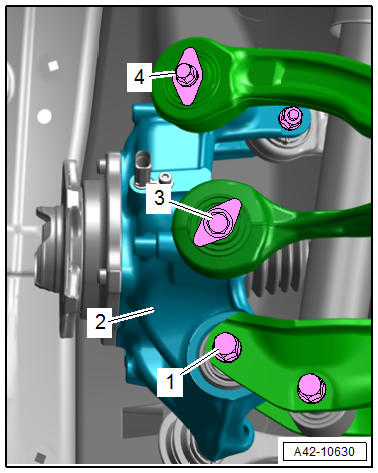

- Remove the bolts -3 and 4- and disconnect the connector -1-.
- Loosen the wheel bearing housing -2- from the drive axle and remove it.
Installing
Install in reverse order of removal and note the following:
- Install the threaded connections up to the stop but do not tighten yet.
Note
Bonded rubber bushings have a limited range of rotation. Only tighten the threaded connections for the suspension when the vehicle is in curb weight position.
- Lift the wheel bearing in curb weight position. Refer to → Chapter "Wheel Bearing in Curb Weight Position, Lifting Vehicles with Coil Spring".
- Tighten the threaded connection between the drive axle and wheel hub. Refer to → Chapter "Drive Axle Threaded Connection, Loosening and Tightening".
- Overview table for when an axle alignment is needed. Refer to → Chapter "Need for Axle Alignment, Evaluating".
Tightening Specifications
- Refer to → Chapter "Overview - Transverse Link"
- Refer to → Chapter "Overview - Wheel Bearing"
